Overview

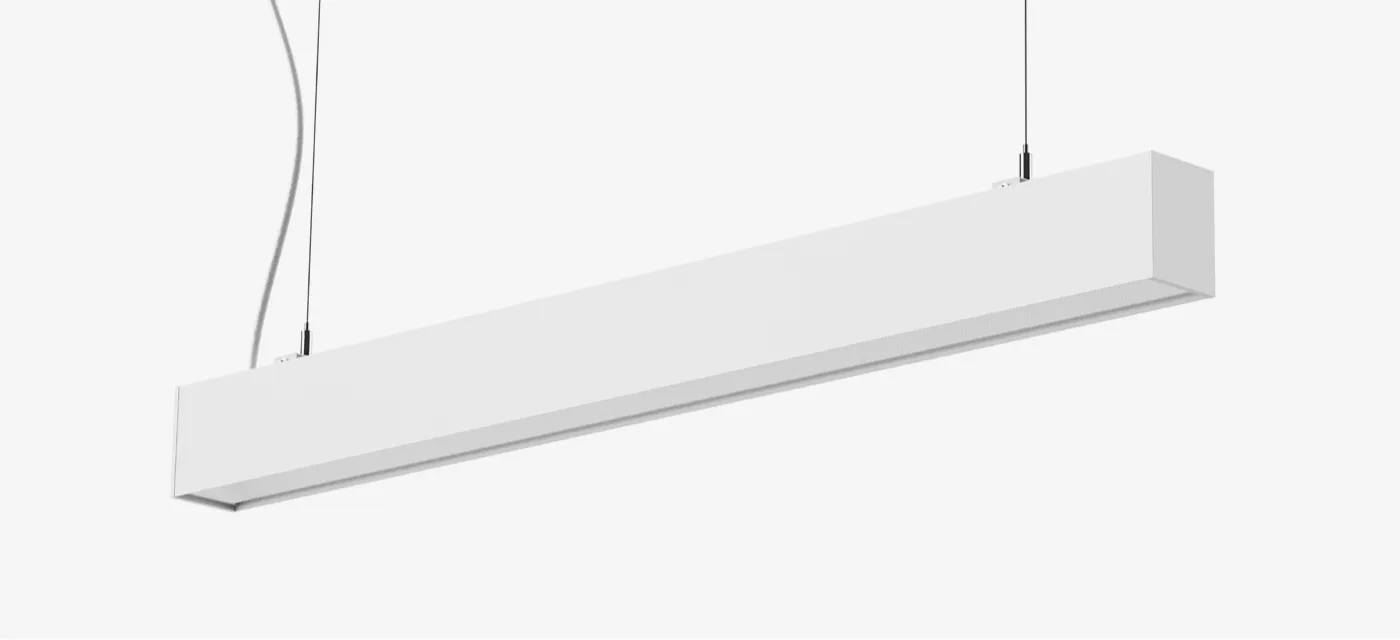

Everine has three diferent sizes, seamless modern design, sleek profle. Combines excellence in design with solid craftsmanshipThe 80° or 120″ powerful and soft light difuses outwards uniformly and without glare. t has the characteristics of an open spaceandat the same time creates a pleasant working atmosphere, giving people a comfortable feeling.

Features

  • High light efficiency of more than 130lm/w.
  • Optimal glare control,UGR<19.
  • In microprismatic lens; Frosted Acrylic Lens.
  • LED board and optics replaceable.
  • Seamless connection and no light leakage.
  • Pendant luminaire direct-indirect light emissionp [30%/70%]
  • Compact profle with refined surface finish.
  • Easy installation without tool needed.
  • No fickering,visual comfort.

Technical Datas

  • Input Voltage: 220~240Vac & 120-277Vac
  • Size: width:67mm, Length:1200/1500/2400/3000mmxH90mm
  • SDCM <3
  • Luminous efficacy: 120lm/w
  • Luminous flux of luminaire: 2800lm-8000lm
  • Colour temperature:3000K,3500K,4000K
  • Colour Rendering Index [CRl]: >80Ra, >90Ra
  • Lifespan:60000h(L90,TC=55°C)
  • IP Protection:lP20
  • IK Protection:lk05
  • Operating:-35~45C
  • Warranty:5 years

Application

  • interior lighting solution and decoration work
  • Office & Education
  • reception rooms, counters
  • Retail & HospitalityHotels, Restaurants

Installation Method

  • Everline

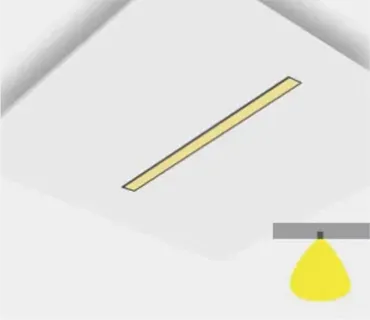

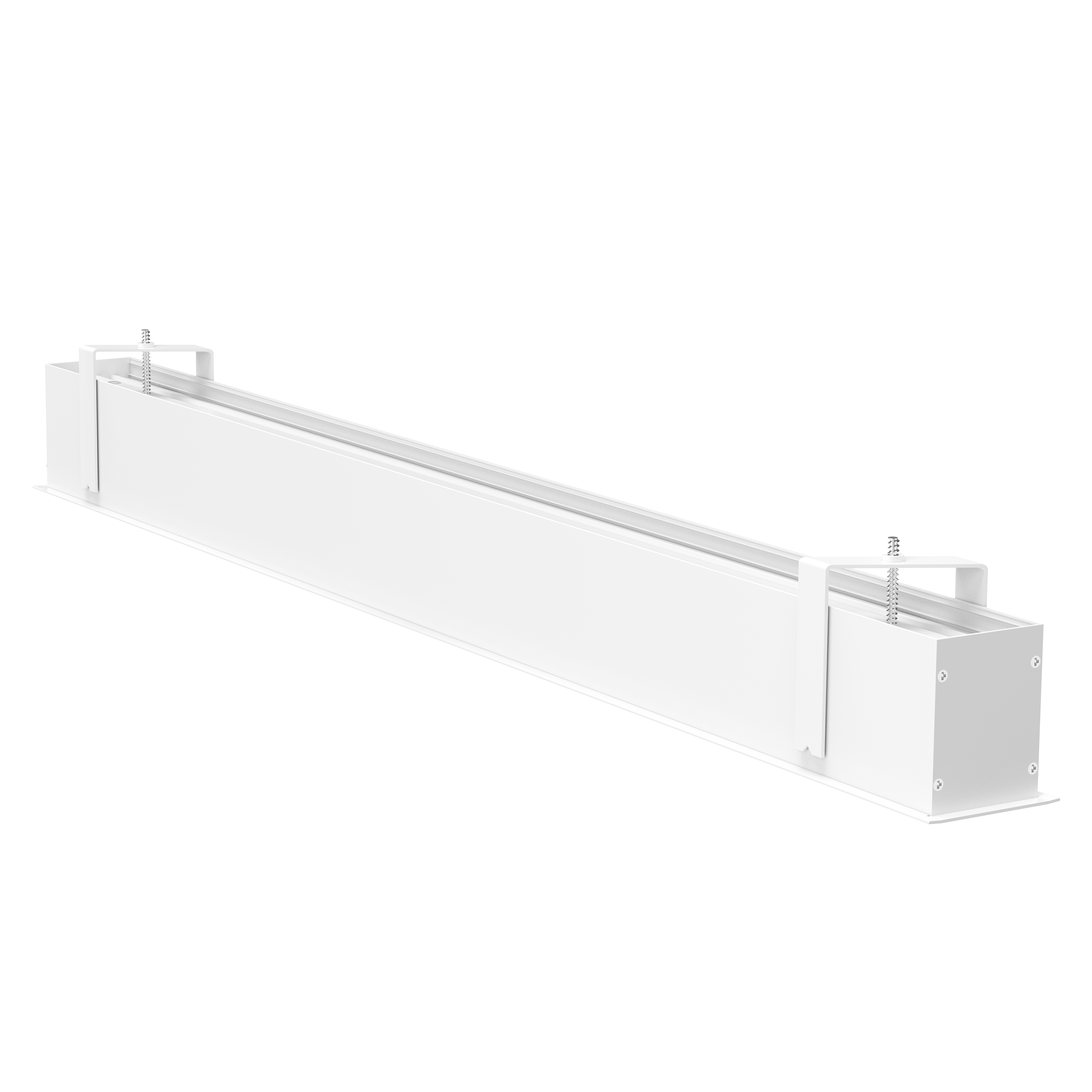

    Trimless Recessed Linear Light

  • Everline

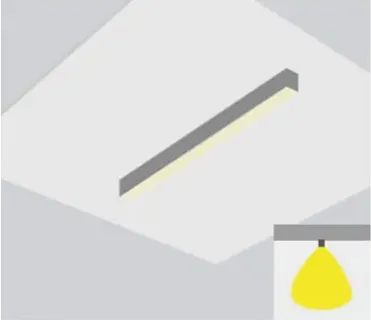

    Ceiling Mounted Linear Light

  • Everline

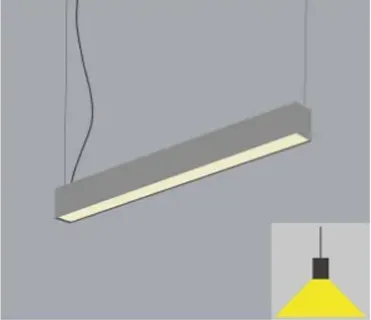

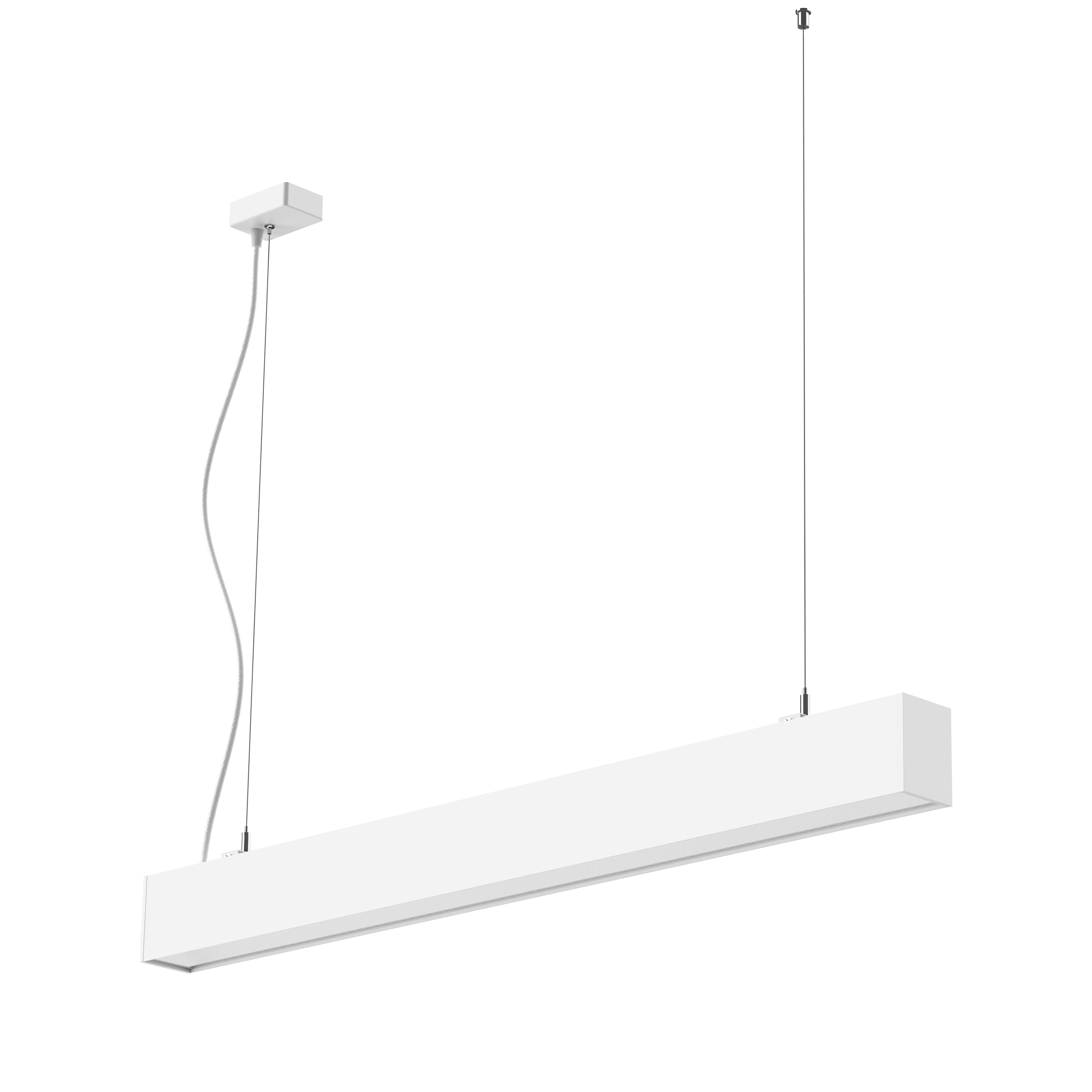

    Suspended Direct light

  • Everline

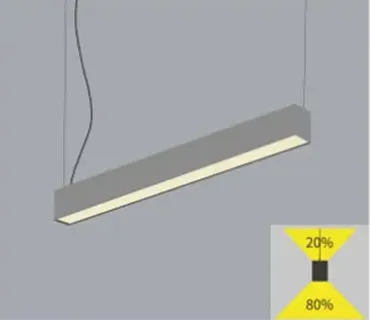

    Suspended Indirect / Direc light

Product Filters

Use the filter to find the appropriate family and disvoer the products within

Length

Please select
  • 1200mm
  • 1500mm
  • 2400mm
  • 3000mm

Distributuion

Please select
  • Direction
  • Direct /Indirect

Power

Please select
  • 30W
  • 40W
  • 60W
  • 80W
  • 50W
  • 100W

Luminous Flux

Please select
  • 3600LM↓
  • 4800LM↓
  • 7200LM↓
  • 9600LM↓
  • 1600LM↑+3200LM↓
  • 2000LM↑+4000LM↓
  • 3200LM↑+6400LM↓
  • 4000LM↑+8000LM↓

CCT

Please select
  • 3000K
  • 4000K
  • 5000K

Dimming

Please select
  • Non
  • DALI

Color

Please select
  • White
  • Black
  • Sliver

Reflector

Please select
  • Microprismatic/Opal
  • icroprismatic/Opal
  • croprismatic/Opal

Items

Product Item Number Length Distribution Power Luminous Flux CCT Dimming Color Reflector Download Preview
EL-DR12030-830-W-NON 1200mm Direction 30W 3600LM↓ 3000K Non White Microprismatic/Opal
EL-DR12030-840-W-NON 1200mm Direction 30W 3600LM↓ 4000K Non White Microprismatic/Opal
EL-DR12030-850-W-NON 1200mm Direction 30W 3600LM↓ 5000K Non White Microprismatic/Opal
EL-DR12030-830-B-NON 1200mm Direction 30W 3600LM↓ 3000K Non Black Microprismatic/Opal
EL-DR12030-840-B-NON 1200mm Direction 30W 3600LM↓ 4000K Non Black Microprismatic/Opal
EL-DR12030-850-B-NON 1200mm Direction 30W 3600LM↓ 5000K Non Black Microprismatic/Opal
EL-DR12030-830-S-NON 1200mm Direction 30W 3600LM↓ 3000K Non Sliver Microprismatic/Opal
EL-DR12030-840-S-NON 1200mm Direction 30W 3600LM↓ 4000K Non Sliver Microprismatic/Opal
EL-DR12030-850-S-NON 1200mm Direction 30W 3600LM↓ 5000K Non Sliver Microprismatic/Opal
EL-DR12030-830-W-DALI 1200mm Direction 30W 3600LM↓ 3000K DALI White Microprismatic/Opal
EL-DR12030-840-W-DALI 1200mm Direction 30W 3600LM↓ 4000K DALI White Microprismatic/Opal
EL-DR12030-850-W-DALI 1200mm Direction 30W 3600LM↓ 5000K DALI White Microprismatic/Opal
EL-DR12030-830-B-DALI 1200mm Direction 30W 3600LM↓ 3000K DALI Black Microprismatic/Opal
EL-DR12030-840-B-DALI 1200mm Direction 30W 3600LM↓ 4000K DALI Black Microprismatic/Opal
EL-DR12030-850-B-DALI 1200mm Direction 30W 3600LM↓ 5000K DALI Black Microprismatic/Opal
EL-DR12030-830-S-DALI 1200mm Direction 30W 3600LM↓ 3000K DALI Sliver Microprismatic/Opal
EL-DR12030-840-S-DALI 1200mm Direction 30W 3600LM↓ 4000K DALI Sliver Microprismatic/Opal
EL-DR12030-850-S-DALI 1200mm Direction 30W 3600LM↓ 5000K DALI Sliver Microprismatic/Opal
EL-DR15040-830-W-NON 1500mm Direction 40W 4800LM↓ 3000K Non White Microprismatic/Opal
EL-DR15040-840-W-NON 1500mm Direction 40W 4800LM↓ 4000K Non White Microprismatic/Opal
EL-DR15040-850-W-NON 1500mm Direction 40W 4800LM↓ 5000K Non White Microprismatic/Opal
EL-DR15040-830-B-NON 1500mm Direction 40W 4800LM↓ 3000K Non Black Microprismatic/Opal
EL-DR15040-840-B-NON 1500mm Direction 40W 4800LM↓ 4000K Non Black Microprismatic/Opal
EL-DR15040-850-B-NON 1500mm Direction 40W 4800LM↓ 5000K Non Black Microprismatic/Opal
EL-DR15040-830-S-NON 1500mm Direction 40W 4800LM↓ 3000K Non Sliver Microprismatic/Opal
EL-DR15040-840-S-NON 1500mm Direction 40W 4800LM↓ 4000K Non Sliver Microprismatic/Opal
EL-DR15040-850-S-NON 1500mm Direction 40W 4800LM↓ 5000K Non Sliver Microprismatic/Opal
EL-DR15040-830-W-DALI 1500mm Direction 40W 4800LM↓ 3000K DALI White Microprismatic/Opal
EL-DR15040-840-W-DALI 1500mm Direction 40W 4800LM↓ 4000K DALI White Microprismatic/Opal
EL-DR15040-850-W-DALI 1500mm Direction 40W 4800LM↓ 5000K DALI White Microprismatic/Opal
EL-DR15040-830-B-DALI 1500mm Direction 40W 4800LM↓ 3000K DALI Black Microprismatic/Opal
EL-DR15040-840-B-DALI 1500mm Direction 40W 4800LM↓ 4000K DALI Black Microprismatic/Opal
EL-DR15040-850-B-DALI 1500mm Direction 40W 4800LM↓ 5000K DALI Black Microprismatic/Opal
EL-DR15040-830-S-DALI 1500mm Direction 40W 4800LM↓ 3000K DALI Sliver Microprismatic/Opal
EL-DR15040-840-S-DALI 1500mm Direction 40W 4800LM↓ 4000K DALI Sliver Microprismatic/Opal
EL-DR15040-850-S-DALI 1500mm Direction 40W 4800LM↓ 5000K DALI Sliver Microprismatic/Opal
EL-DR24060-830-W-NON 2400mm Direction 60W 7200LM↓ 3000K Non White icroprismatic/Opal
EL-DR24060-840-W-NON 2400mm Direction 60W 7200LM↓ 4000K Non White icroprismatic/Opal
EL-DR24060-850-W-NON 2400mm Direction 60W 7200LM↓ 5000K Non White icroprismatic/Opal
EL-DR24060-830-B-NON 2400mm Direction 60W 7200LM↓ 3000K Non Black icroprismatic/Opal
EL-DR24060-840-B-NON 2400mm Direction 60W 7200LM↓ 4000K Non Black icroprismatic/Opal
EL-DR24060-850-B-NON 2400mm Direction 60W 7200LM↓ 5000K Non Black icroprismatic/Opal
EL-DR24060-830-S-NON 2400mm Direction 60W 7200LM↓ 3000K Non Sliver icroprismatic/Opal
EL-DR24060-840-S-NON 2400mm Direction 60W 7200LM↓ 4000K Non Sliver icroprismatic/Opal
EL-DR24060-850-S-NON 2400mm Direction 60W 7200LM↓ 5000K Non Sliver icroprismatic/Opal
EL-DR24060-830-W-NON 2400mm Direction 60W 7200LM↓ 3000K DALI White icroprismatic/Opal
EL-DR24060-840-W-NON 2400mm Direction 60W 7200LM↓ 4000K DALI White icroprismatic/Opal
EL-DR24060-850-W-NON 2400mm Direction 60W 7200LM↓ 5000K DALI White icroprismatic/Opal
EL-DR24060-830-B-NON 2400mm Direction 60W 7200LM↓ 3000K DALI Black icroprismatic/Opal
EL-DR24060-840-B-NON 2400mm Direction 60W 7200LM↓ 4000K DALI Black icroprismatic/Opal
EL-DR24060-850-B-NON 2400mm Direction 60W 7200LM↓ 5000K DALI Black icroprismatic/Opal
EL-DR24060-830-S-NON 2400mm Direction 60W 7200LM↓ 3000K DALI Sliver icroprismatic/Opal
EL-DR24060-840-S-NON 2400mm Direction 60W 7200LM↓ 4000K DALI Sliver icroprismatic/Opal
EL-DR24060-850-S-NON 2400mm Direction 60W 7200LM↓ 5000K DALI Sliver icroprismatic/Opal
EL-DR30080-830-W-NON 3000mm Direction 80W 9600LM↓ 3000K Non White croprismatic/Opal
EL-DR30080-840-W-NON 3000mm Direction 80W 9600LM↓ 4000K Non White croprismatic/Opal
EL-DR30080-850-W-NON 3000mm Direction 80W 9600LM↓ 5000K Non White croprismatic/Opal
EL-DR30080-830-B-NON 3000mm Direction 80W 9600LM↓ 3000K Non Black croprismatic/Opal
EL-DR30080-840-B-NON 3000mm Direction 80W 9600LM↓ 4000K Non Black croprismatic/Opal
EL-DR30080-850-B-NON 3000mm Direction 80W 9600LM↓ 5000K Non Black croprismatic/Opal
EL-DR30080-830-S-NON 3000mm Direction 80W 9600LM↓ 3000K Non Sliver croprismatic/Opal
EL-DR30080-840-S-NON 3000mm Direction 80W 9600LM↓ 4000K Non Sliver croprismatic/Opal
EL-DR30080-850-S-NON 3000mm Direction 80W 9600LM↓ 5000K Non Sliver croprismatic/Opal
EL-DR30080-830-W-DALI 3000mm Direction 80W 9600LM↓ 3000K DALI White croprismatic/Opal
EL-DR30080-840-W-DALI 3000mm Direction 80W 9600LM↓ 4000K DALI White croprismatic/Opal
EL-DR30080-850-W-DALI 3000mm Direction 80W 9600LM↓ 5000K DALI White croprismatic/Opal
EL-DR30080-830-B-DALI 3000mm Direction 80W 9600LM↓ 3000K DALI Black croprismatic/Opal
EL-DR30080-840-B-DALI 3000mm Direction 80W 9600LM↓ 4000K DALI Black croprismatic/Opal
EL-DR30080-850-B-DALI 3000mm Direction 80W 9600LM↓ 5000K DALI Black croprismatic/Opal
EL-DR30080-830-S-DALI 3000mm Direction 80W 9600LM↓ 3000K DALI Sliver croprismatic/Opal
EL-DR30080-840-S-DALI 3000mm Direction 80W 9600LM↓ 4000K DALI Sliver croprismatic/Opal
EL-DR30080-850-S-DALI 3000mm Direction 80W 9600LM↓ 5000K DALI Sliver croprismatic/Opal
EL-ID12040-830-W-NON 1200mm Direction 40W 1600LM↑+3200LM↓ 3000K Non White croprismatic/Opal
EL-ID12040-840-W-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K Non White croprismatic/Opal
EL-ID12040-850-W-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K Non White croprismatic/Opal
EL-ID12040-830-B-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K Non Black croprismatic/Opal
EL-ID12040-840-B-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K Non Black croprismatic/Opal
EL-ID12040-850-B-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K Non Black croprismatic/Opal
EL-ID12040-830-S-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K Non Sliver croprismatic/Opal
EL-ID12040-840-S-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K Non Sliver croprismatic/Opal
EL-ID12040-850-S-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K Non Sliver croprismatic/Opal
EL-ID12040-830-W-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K DALI White croprismatic/Opal
EL-ID12040-840-W-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K DALI White croprismatic/Opal
EL-ID12040-850-W-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K DALI White croprismatic/Opal
EL-ID12040-830-B-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K DALI Black croprismatic/Opal
EL-ID12040-840-B-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K DALI Black croprismatic/Opal
EL-ID12040-850-B-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K DALI Black croprismatic/Opal
EL-ID12040-830-S-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K DALI Sliver croprismatic/Opal
EL-ID12040-840-S-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K DALI Sliver croprismatic/Opal
EL-ID12040-850-S-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K DALI Sliver croprismatic/Opal
EL-ID15050-830-W-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K Non White croprismatic/Opal
EL-ID15050-840-W-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K Non White croprismatic/Opal
EL-ID15050-850-W-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K Non White croprismatic/Opal
EL-ID15050-830-B-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K Non Black croprismatic/Opal
EL-ID15050-840-B-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K Non Black croprismatic/Opal
EL-ID15050-850-B-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K Non Black croprismatic/Opal
EL-ID15050-830-S-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K Non Sliver croprismatic/Opal
EL-ID15050-840-S-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K Non Sliver croprismatic/Opal
EL-ID15050-850-S-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K Non Sliver croprismatic/Opal
EL-ID15050-830-W-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K DALI White croprismatic/Opal
EL-ID15050-840-W-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K DALI White croprismatic/Opal
EL-ID15050-850-W-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K DALI White croprismatic/Opal
EL-ID15050-830-B-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K DALI Black croprismatic/Opal
EL-ID15050-840-B-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K DALI Black croprismatic/Opal
EL-ID15050-850-B-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K DALI Black croprismatic/Opal
EL-ID15050-830-S-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K DALI Sliver croprismatic/Opal
EL-ID15050-840-S-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K DALI Sliver croprismatic/Opal
EL-ID15050-850-S-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K DALI Sliver croprismatic/Opal
EL-ID24080-830-W-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K Non White croprismatic/Opal
EL-ID24080-840-W-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K Non White croprismatic/Opal
EL-ID24080-850-W-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K Non White croprismatic/Opal
EL-ID24080-830-B-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K Non Black croprismatic/Opal
EL-ID24080-840-B-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K Non Black croprismatic/Opal
EL-ID24080-850-B-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K Non Black croprismatic/Opal
EL-ID24080-830-S-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K Non Sliver croprismatic/Opal
EL-ID24080-840-S-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K Non Sliver croprismatic/Opal
EL-ID24080-850-S-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K Non Sliver croprismatic/Opal
EL-ID24080-830-W-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K DALI White croprismatic/Opal
EL-ID24080-840-W-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K DALI White croprismatic/Opal
EL-ID24080-850-W-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K DALI White croprismatic/Opal
EL-ID24080-830-B-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K DALI Black croprismatic/Opal
EL-ID24080-840-B-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K DALI Black croprismatic/Opal
EL-ID24080-850-B-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K DALI Black croprismatic/Opal
EL-ID24080-830-S-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K DALI Sliver croprismatic/Opal
EL-ID24080-840-S-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K DALI Sliver croprismatic/Opal
EL-ID24080-850-S-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K DALI Sliver croprismatic/Opal
EL-ID30100-830-W-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K Non White croprismatic/Opal
EL-ID30100-840-W-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K Non White croprismatic/Opal
EL-ID30100-850-W-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K Non White croprismatic/Opal
EL-ID30100-830-B-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K Non Black croprismatic/Opal
EL-ID30100-840-B-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K Non Black croprismatic/Opal
EL-ID30ID30100-850-B-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K Non Black croprismatic/Opal
EL-ID30100-830-S-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K Non Sliver croprismatic/Opal
EL-ID30100-840-S-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K Non Sliver croprismatic/Opal
EL-ID30100-850-S-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K Non Sliver croprismatic/Opal
EL-ID30100-830-W-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K DALI White croprismatic/Opal
EL-ID30100-840-W-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K DALI White croprismatic/Opal
EL-ID30100-850-W-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K DALI White croprismatic/Opal
EL-ID30100-830-B-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K DALI Black croprismatic/Opal
EL-ID30100-840-B-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K DALI Black croprismatic/Opal
EL-ID30100-850-B-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K DALI Black croprismatic/Opal
EL-ID30100-830-S-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K DALI Sliver croprismatic/Opal
EL-ID30100-840-S-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K DALI Sliver croprismatic/Opal
EL-ID30100-850-S-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K DALI Sliver croprismatic/Opal

Related Products in the Everline family

  • Eco-Shine

  • Gevian linear

  • Evian Linear

      Newsletter

      Sign up for our newsletter to find out more about our new products, technologies and digital solutions.

      ©2025 GLEMING All rights reserved
