Overview

Evian linear body is slender as a line, like a beautiful view in the air. Its excellent flexible and practical design can realize seamless splicing and segment control without light leakage.
The light is designed with multiple layers of reflection through precise angles, providing a comfortable and soft light quality and reducing the office visual fatigue after long hours.

Features

  • CCT:3000/4000/5000K
  • Dimming: Non/1-10V dimming/DALl dimming
  • End Cup Colour: Silver / White / Black
  • Warranty: 5 year

Specifications

  • AC220-240V
  • 44*75mm

Applications

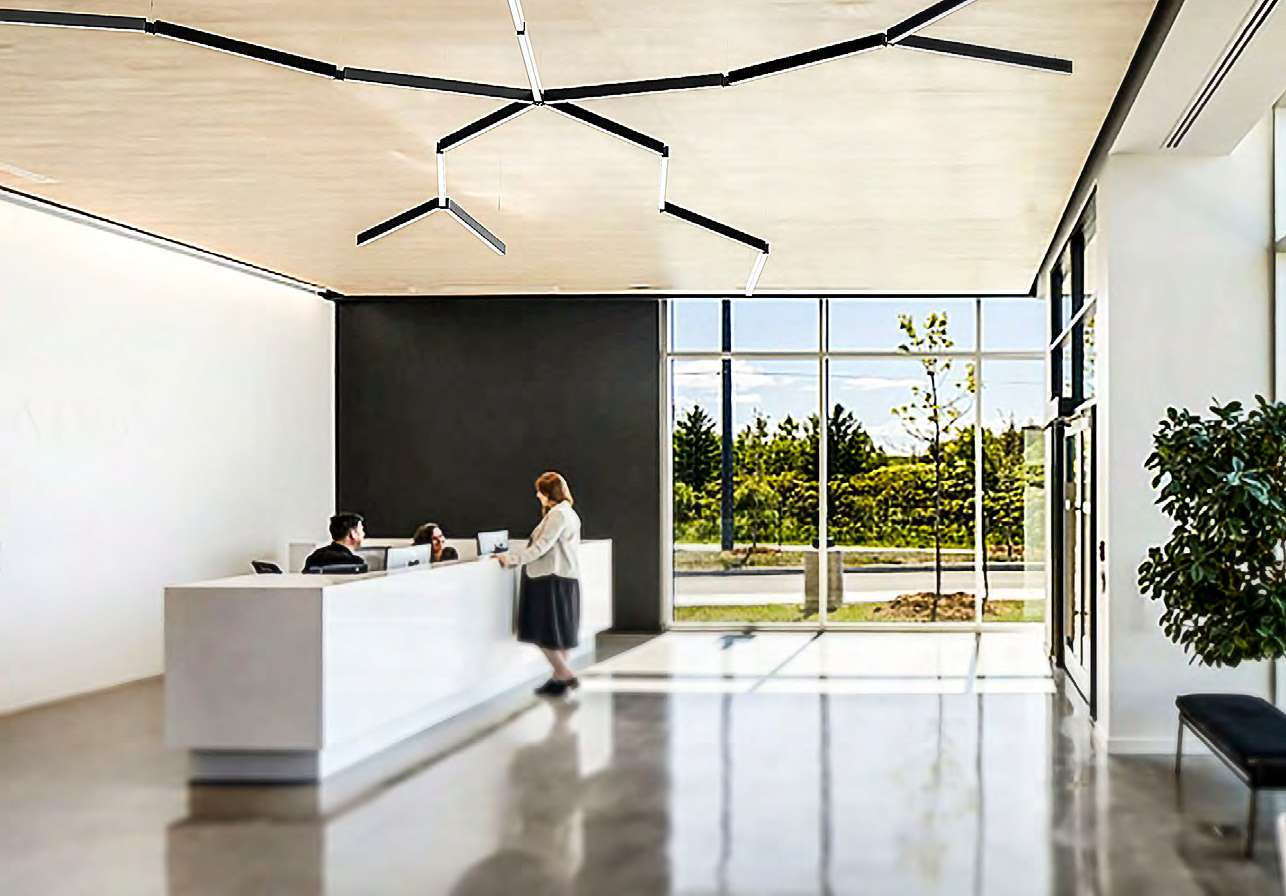

  • Office & Education Offices, reception rooms, counters
  • Retail & Hospitality Hotels, Restaurants

Installation Method

  • Evian Linear

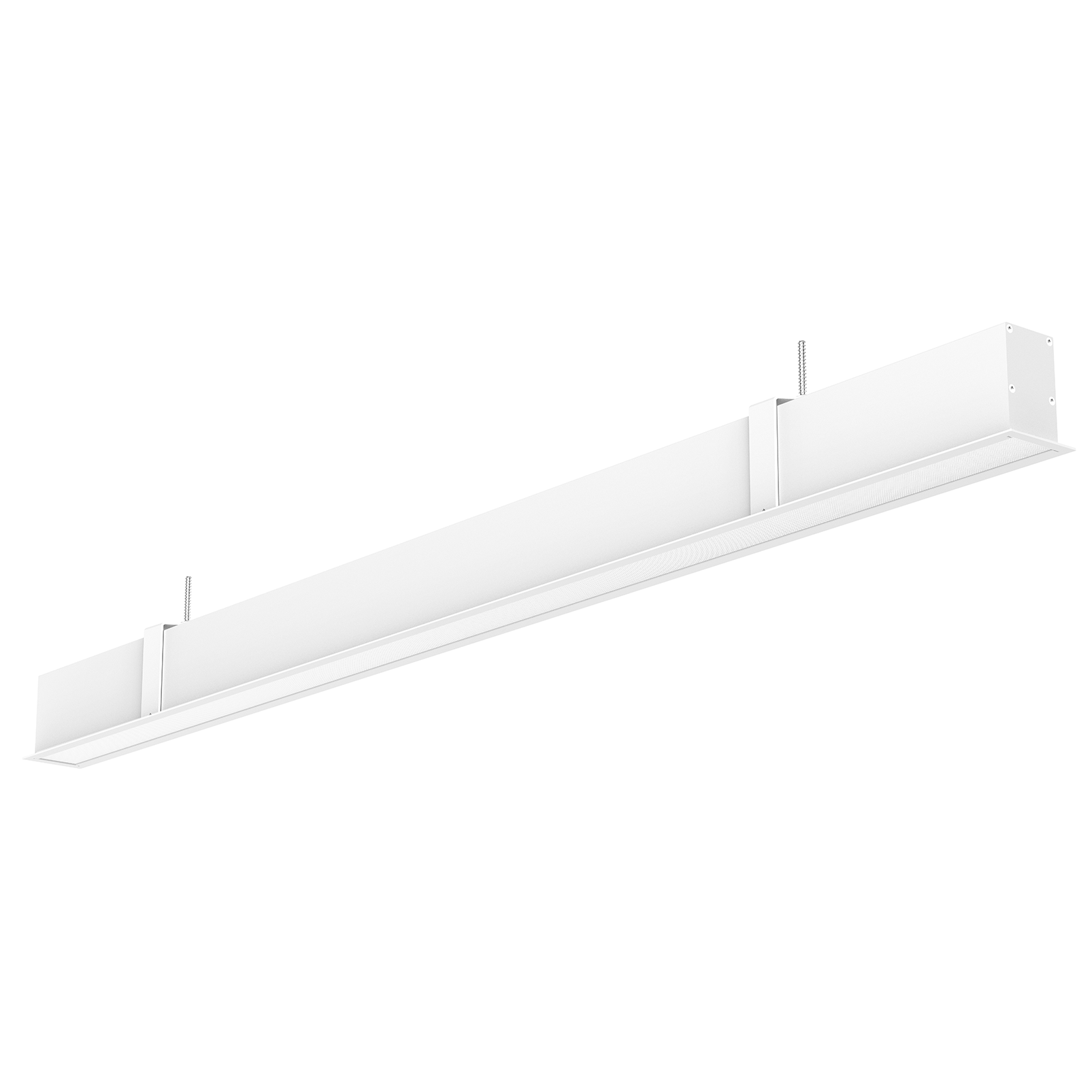

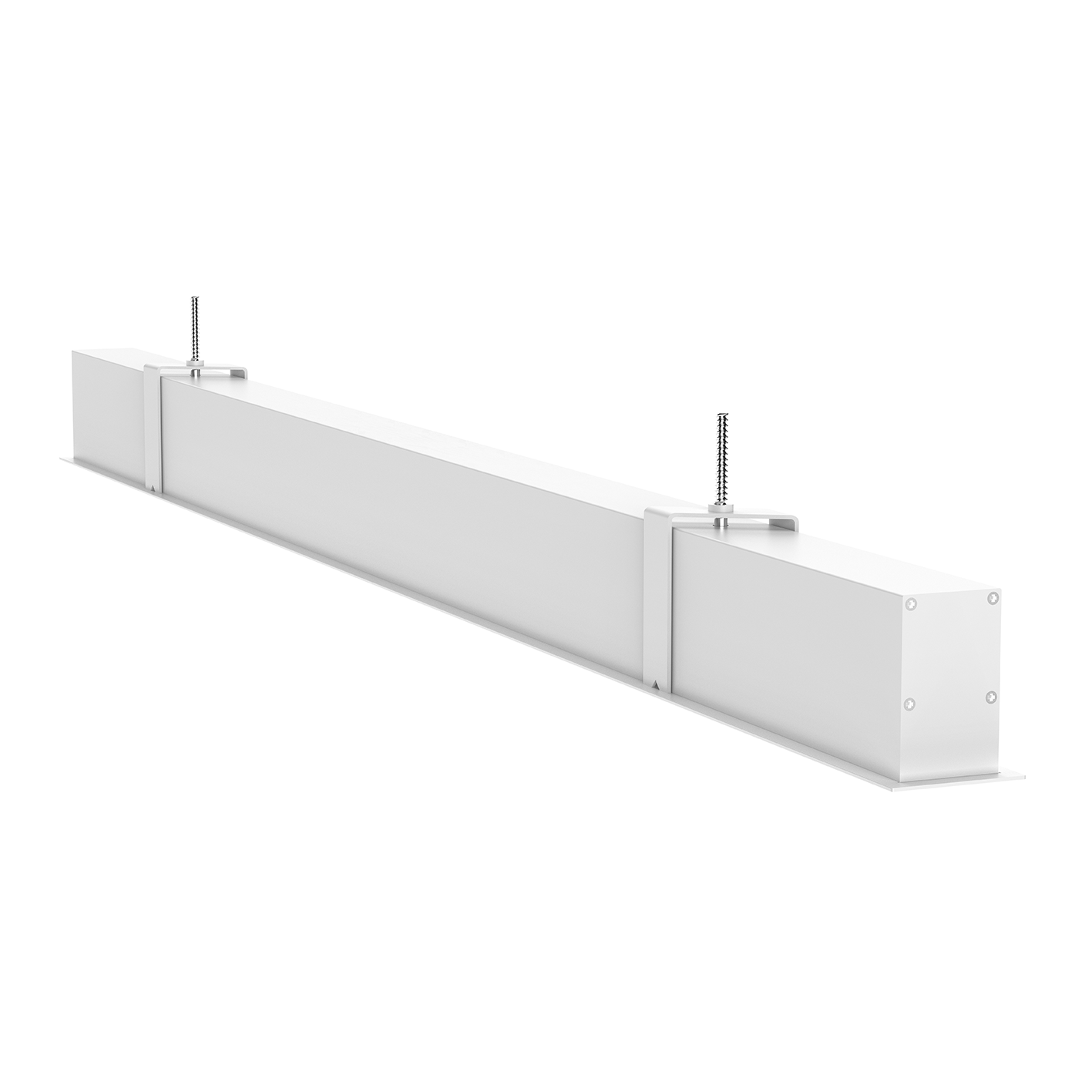

    Trimless Recessed Linear Light

  • Evian Linear

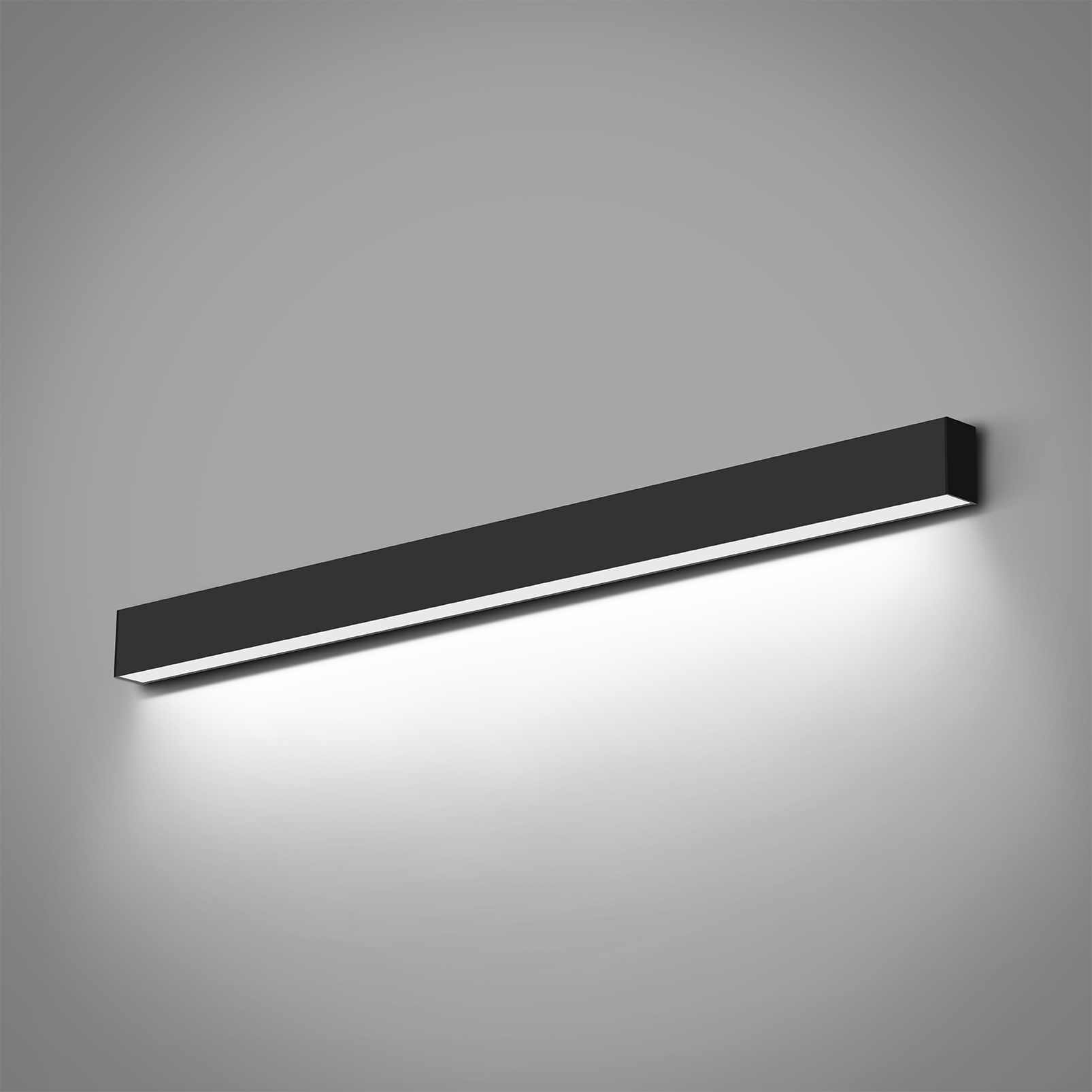

    Ceiling Mounted Linear Light

  • Evian Linear

    Suspended Direct light

  • Evian Linear

    Suspended indirect/Direct light

Product Filters

Use the filter to find the appropriate family and disvoer the products within

Length

Please select
  • 1200mm
  • 1500mm
  • 2400mm
  • 3000mm

Distributuion

Please select
  • Direction
  • Direct /Indirect

Power

Please select
  • 30W
  • 40W
  • 60W
  • 80W
  • 50W
  • 100W

Luminous Flux

Please select
  • 3600LM↓
  • 4800LM↓
  • 7200LM↓
  • 9600LM↓
  • 1600LM↑+3200LM↓
  • 2000LM↑+4000LM↓
  • 3200LM↑+6400LM↓
  • 4000LM↑+8000LM↓

CCT

Please select
  • 3000K
  • 4000K
  • 5000K

Dimming

Please select
  • NON
  • DALI

Color

Please select
  • White
  • Black
  • Sliver

Reflector

Please select
  • Microprismatic/Opal

Items

Product Item Number Length Distribution Power Luminous Flux CCT Dimming Color Reflector Download Preview
EV-DR12030-830-W-NON 1200mm Direction 30W 3600LM↓ 3000K NON White Microprismatic/Opal
EV-DR12030-840-W-NON 1200mm Direction 30W 3600LM↓ 4000K NON White Microprismatic/Opal
EV-DR12030-850-W-NON 1200mm Direction 30W 3600LM↓ 5000K NON White Microprismatic/Opal
EV-DR12030-830-B-NON 1200mm Direction 30W 3600LM↓ 3000K NON Black Microprismatic/Opal
EV-DR12030-840-B-NON 1200mm Direction 30W 3600LM↓ 4000K NON Black Microprismatic/Opal
EV-DR12030-850-B-NON 1200mm Direction 30W 3600LM↓ 5000K NON Black Microprismatic/Opal
EV-DR12030-830-S-NON 1200mm Direction 30W 3600LM↓ 3000K NON Sliver Microprismatic/Opal
EV-DR12030-840-S-NON 1200mm Direction 30W 3600LM↓ 4000K NON Sliver Microprismatic/Opal
EV-DR12030-850-S-NON 1200mm Direction 30W 3600LM↓ 5000K NON Sliver Microprismatic/Opal
EV-DR12030-830-W-DALI 1200mm Direction 30W 3600LM↓ 3000K DALI White Microprismatic/Opal
EV-DR12030-840-W-DALI 1200mm Direction 30W 3600LM↓ 4000K DALI White Microprismatic/Opal
EV-DR12030-850-W-DALI 1200mm Direction 30W 3600LM↓ 5000K DALI White Microprismatic/Opal
EV-DR12030-830-B-DALI 1200mm Direction 30W 3600LM↓ 3000K DALI Black Microprismatic/Opal
EV-DR12030-840-B-DALI 1200mm Direction 30W 3600LM↓ 4000K DALI Black Microprismatic/Opal
EV-DR12030-850-B-DALI 1200mm Direction 30W 3600LM↓ 5000K DALI Black Microprismatic/Opal
EV-DR12030-830-S-DALI 1200mm Direction 30W 3600LM↓ 3000K DALI Sliver Microprismatic/Opal
EV-DR12030-840-S-DALI 1200mm Direction 30W 3600LM↓ 4000K DALI Sliver Microprismatic/Opal
EV-DR12030-850-S-DALI 1200mm Direction 30W 3600LM↓ 5000K DALI Sliver Microprismatic/Opal
EV-DR15040-830-W-NON 1500mm Direction 40W 4800LM↓ 3000K NON White Microprismatic/Opal
EV-DR15040-840-W-NON 1500mm Direction 40W 4800LM↓ 4000K NON White Microprismatic/Opal
EV-DR15040-850-W-NON 1500mm Direction 40W 4800LM↓ 5000K NON White Microprismatic/Opal
EV-DR15040-830-B-NON 1500mm Direction 40W 4800LM↓ 3000K NON Black Microprismatic/Opal
EV-DR15040-840-B-NON 1500mm Direction 40W 4800LM↓ 4000K NON Black Microprismatic/Opal
EV-DR15040-850-B-NON 1500mm Direction 40W 4800LM↓ 5000K NON Black Microprismatic/Opal
EV-DR15040-830-S-NON 1500mm Direction 40W 4800LM↓ 3000K NON Sliver Microprismatic/Opal
EV-DR15040-840-S-NON 1500mm Direction 40W 4800LM↓ 4000K NON Sliver Microprismatic/Opal
EV-DR15040-850-S-NON 1500mm Direction 40W 4800LM↓ 5000K NON Sliver Microprismatic/Opal
EV-DR15040-830-W-DALI 1500mm Direction 40W 4800LM↓ 3000K DALI White Microprismatic/Opal
EV-DR15040-840-W-DALI 1500mm Direction 40W 4800LM↓ 4000K DALI White Microprismatic/Opal
EV-DR15040-850-W-DALI 1500mm Direction 40W 4800LM↓ 5000K DALI White Microprismatic/Opal
EV-DR15040-830-B-DALI 1500mm Direction 40W 4800LM↓ 3000K DALI Black Microprismatic/Opal
EV-DR15040-840-B-DALI 1500mm Direction 40W 4800LM↓ 4000K DALI Black Microprismatic/Opal
EV-DR15040-850-B-DALI 1500mm Direction 40W 4800LM↓ 5000K DALI Black Microprismatic/Opal
EV-DR15040-830-S-DALI 1500mm Direction 40W 4800LM↓ 3000K DALI Sliver Microprismatic/Opal
EV-DR15040-840-S-DALI 1500mm Direction 40W 4800LM↓ 4000K DALI Sliver Microprismatic/Opal
EV-DR15040-850-S-DALI 1500mm Direction 40W 4800LM↓ 5000K DALI Sliver Microprismatic/Opal
EV-DR24060-830-W-NON 2400mm Direction 60W 7200LM↓ 3000K NON White Microprismatic/Opal
EV-DR24060-840-W-NON 2400mm Direction 60W 7200LM↓ 4000K NON White Microprismatic/Opal
EV-DR24060-850-W-NON 2400mm Direction 60W 7200LM↓ 5000K NON White Microprismatic/Opal
EV-DR24060-830-B-NON 2400mm Direction 60W 7200LM↓ 3000K NON Black Microprismatic/Opal
EV-DR24060-840-B-NON 2400mm Direction 60W 7200LM↓ 4000K NON Black Microprismatic/Opal
EV-DR24060-850-B-NON 2400mm Direction 60W 7200LM↓ 5000K NON Black Microprismatic/Opal
EV-DR24060-830-S-NON 2400mm Direction 60W 7200LM↓ 3000K NON Sliver Microprismatic/Opal
EV-DR24060-840-S-NON 2400mm Direction 60W 7200LM↓ 4000K NON Sliver Microprismatic/Opal
EV-DR24060-850-S-NON 2400mm Direction 60W 7200LM↓ 5000K NON Sliver Microprismatic/Opal
EV-DR24060-830-W-NON 2400mm Direction 60W 7200LM↓ 3000K DALI White Microprismatic/Opal
EV-DR24060-840-W-NON 2400mm Direction 60W 7200LM↓ 4000K DALI White Microprismatic/Opal
EV-DR24060-850-W-NON 2400mm Direction 60W 7200LM↓ 5000K DALI White Microprismatic/Opal
EV-DR24060-830-B-NON 2400mm Direction 60W 7200LM↓ 3000K DALI Black Microprismatic/Opal
EV-DR24060-840-B-NON 2400mm Direction 60W 7200LM↓ 4000K DALI Black Microprismatic/Opal
EV-DR24060-850-B-NON 2400mm Direction 60W 7200LM↓ 5000K DALI Black Microprismatic/Opal
EV-DR24060-830-S-NON 2400mm Direction 60W 7200LM↓ 3000K DALI Sliver Microprismatic/Opal
EV-DR24060-840-S-NON 2400mm Direction 60W 7200LM↓ 4000K DALI Sliver Microprismatic/Opal
EV-DR24060-850-S-NON 2400mm Direction 60W 7200LM↓ 5000K DALI Sliver Microprismatic/Opal
EV-DR30080-830-W-NON 3000mm Direction 80W 9600LM↓ 3000K NON White Microprismatic/Opal
EV-DR30080-840-W-NON 3000mm Direction 80W 9600LM↓ 4000K NON White Microprismatic/Opal
EV-DR30080-850-W-NON 3000mm Direction 80W 9600LM↓ 5000K NON White Microprismatic/Opal
EV-DR30080-830-B-NON 3000mm Direction 80W 9600LM↓ 3000K NON Black Microprismatic/Opal
EV-DR30080-840-B-NON 3000mm Direction 80W 9600LM↓ 4000K NON Black Microprismatic/Opal
EV-DR30080-850-B-NON 3000mm Direction 80W 9600LM↓ 5000K NON Black Microprismatic/Opal
EV-DR30080-830-S-NON 3000mm Direction 80W 9600LM↓ 3000K NON Sliver Microprismatic/Opal
EV-DR30080-840-S-NON 3000mm Direction 80W 9600LM↓ 4000K NON Sliver Microprismatic/Opal
EV-DR30080-850-S-NON 3000mm Direction 80W 9600LM↓ 5000K NON Sliver Microprismatic/Opal
EV-DR30080-830-W-DALI 3000mm Direction 80W 9600LM↓ 3000K DALI White Microprismatic/Opal
EV-DR30080-840-W-DALI 3000mm Direction 80W 9600LM↓ 4000K DALI White Microprismatic/Opal
EV-DR30080-850-W-DALI 3000mm Direction 80W 9600LM↓ 5000K DALI White Microprismatic/Opal
EV-DR30080-830-B-DALI 3000mm Direction 80W 9600LM↓ 3000K DALI Black Microprismatic/Opal
EV-DR30080-840-B-DALI 3000mm Direction 80W 9600LM↓ 4000K DALI Black Microprismatic/Opal
EV-DR30080-850-B-DALI 3000mm Direction 80W 9600LM↓ 5000K DALI Black Microprismatic/Opal
EV-DR30080-830-S-DALI 3000mm Direction 80W 9600LM↓ 3000K DALI Sliver Microprismatic/Opal
EV-DR30080-840-S-DALI 3000mm Direction 80W 9600LM↓ 4000K DALI Sliver Microprismatic/Opal
EV-DR30080-850-S-DALI 3000mm Direction 80W 9600LM↓ 5000K DALI Sliver Microprismatic/Opal
EV-ID12040-830-W-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K NON White Microprismatic/Opal
EV-ID12040-840-W-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K NON White Microprismatic/Opal
EV-ID12040-850-W-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K NON White Microprismatic/Opal
EV-ID12040-830-B-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K NON Black Microprismatic/Opal
EV-ID12040-840-B-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K NON Black Microprismatic/Opal
EV-ID12040-850-B-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K NON Black Microprismatic/Opal
EV-ID12040-830-S-NON 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K NON Sliver Microprismatic/Opal
EV-ID12040-840-S- 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K NON Sliver Microprismatic/Opal
EV-ID12040-850-S- 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K NON Sliver Microprismatic/Opal
EV-ID12040-830-W-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K DALI White Microprismatic/Opal
EV-ID12040-840-W-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K DALI White Microprismatic/Opal
EV-ID12040-850-W-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K DALI White Microprismatic/Opal
EV-ID12040-830-B- 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K DALI Black Microprismatic/Opal
EV-ID12040-840-B- 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K DALI Black Microprismatic/Opal
EV-ID12040-850-B- 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K DALI Black Microprismatic/Opal
EV-ID12040-830-S-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 3000K DALI Sliver Microprismatic/Opal
EV-ID12040-840-S-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 4000K DALI Sliver Microprismatic/Opal
EV-ID12040-850-S-DALI 1200mm Direct /Indirect 40W 1600LM↑+3200LM↓ 5000K DALI Sliver Microprismatic/Opal
EV-ID15050-830-W-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K NON White Microprismatic/Opal
EV-ID15050-840-W-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K NON White Microprismatic/Opal
EV-ID15050-850-W-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K NON White Microprismatic/Opal
EV-ID15050-830-B-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K NON Black Microprismatic/Opal
EV-ID15050-840-B-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K NON Black Microprismatic/Opal
EV-ID15050-850-B-NON 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K NON Black Microprismatic/Opal
EV-ID15050-830-S- 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K NON Sliver Microprismatic/Opal
EV-ID15050-840-S- 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K NON Sliver Microprismatic/Opal
EV-ID15050-850-S- 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K NON Sliver Microprismatic/Opal
EV-ID15050-830-W-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K DALI White Microprismatic/Opal
EV-ID15050-840-W-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K DALI White Microprismatic/Opal
EV-ID15050-850-W-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K DALI White Microprismatic/Opal
EV-ID15050-830-B-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K DALI Black Microprismatic/Opal
EV-ID15050-840-B-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K DALI Black Microprismatic/Opal
EV-ID15050-850-B- 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K DALI Black Microprismatic/Opal
EV-ID15050-830-S-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 3000K DALI Sliver Microprismatic/Opal
EV-ID15050-840-S-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 4000K DALI Sliver Microprismatic/Opal
EV-ID15050-850-S-DALI 1500mm Direct /Indirect 50W 2000LM↑+4000LM↓ 5000K DALI Sliver Microprismatic/Opal
EV-ID24080-830-W-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K NON White Microprismatic/Opal
EV-ID24080-840-W-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K NON White Microprismatic/Opal
EV-ID24080-850-W-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K NON White Microprismatic/Opal
EV-ID24080-830-B-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K NON Black Microprismatic/Opal
EV-ID24080-840-B-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K NON Black Microprismatic/Opal
EV-ID24080-850-B-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K NON Black Microprismatic/Opal
EV-ID24080-830-S-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K NON Sliver Microprismatic/Opal
EV-ID24080-840-S-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K NON Sliver Microprismatic/Opal
EV-ID24080-850-S-NON 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K NON Sliver Microprismatic/Opal
EV-ID24080-830-W-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K DALI White Microprismatic/Opal
EV-ID24080-840-W-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K DALI White Microprismatic/Opal
EV-ID24080-850-W-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K DALI White Microprismatic/Opal
EV-ID24080-830-B-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K DALI Black Microprismatic/Opal
EV-ID24080-840-B-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K DALI Black Microprismatic/Opal
EV-ID24080-850-B-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K DALI Black Microprismatic/Opal
EV-ID24080-830-S-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 3000K DALI Sliver Microprismatic/Opal
EV-ID24080-840-S-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 4000K DALI Sliver Microprismatic/Opal
EV-ID24080-850-S-DALI 2400mm Direct /Indirect 80W 3200LM↑+6400LM↓ 5000K DALI Sliver Microprismatic/Opal
EV-ID30100-830-W-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K NON White Microprismatic/Opal
EV-ID30100-840-W-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K NON White Microprismatic/Opal
EV-ID30100-850-W-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K NON White Microprismatic/Opal
EV-ID30100-830-B-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K NON Black Microprismatic/Opal
EV-ID30100-840-B-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K NON Black Microprismatic/Opal
EV-ID30ID30100-850-B-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K NON Black Microprismatic/Opal
EV-ID30100-830-S- 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K NON Sliver Microprismatic/Opal
EV-ID30100-840-S-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K NON Sliver Microprismatic/Opal
EV-ID30100-850-S-NON 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K NON Sliver Microprismatic/Opal
EV-ID30100-830-W-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K DALI White Microprismatic/Opal
EV-ID30100-840-W-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K DALI White Microprismatic/Opal
EV-ID30100-850-W-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K DALI White Microprismatic/Opal
EV-ID30100-830-B-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K DALI Black Microprismatic/Opal
EV-ID30100-840-B-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K DALI Black Microprismatic/Opal
EV-ID30100-850-B-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K DALI Black Microprismatic/Opal
EV-ID30100-830-S-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 3000K DALI Sliver Microprismatic/Opal
EV-ID30100-840-S-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 4000K DALI Sliver Microprismatic/Opal
EV-ID30100-850-S-DALI 3000mm Direct /Indirect 100W 4000LM↑+8000LM↓ 5000K DALI Sliver Microprismatic/Opal

Related Products in the Evian Linear family

  • Eco-Shine

  • Gevian linear

  • Flexline Linear

      Newsletter

      Sign up for our newsletter to find out more about our new products, technologies and digital solutions.

      ©2025 GLEMING All rights reserved
