Overview

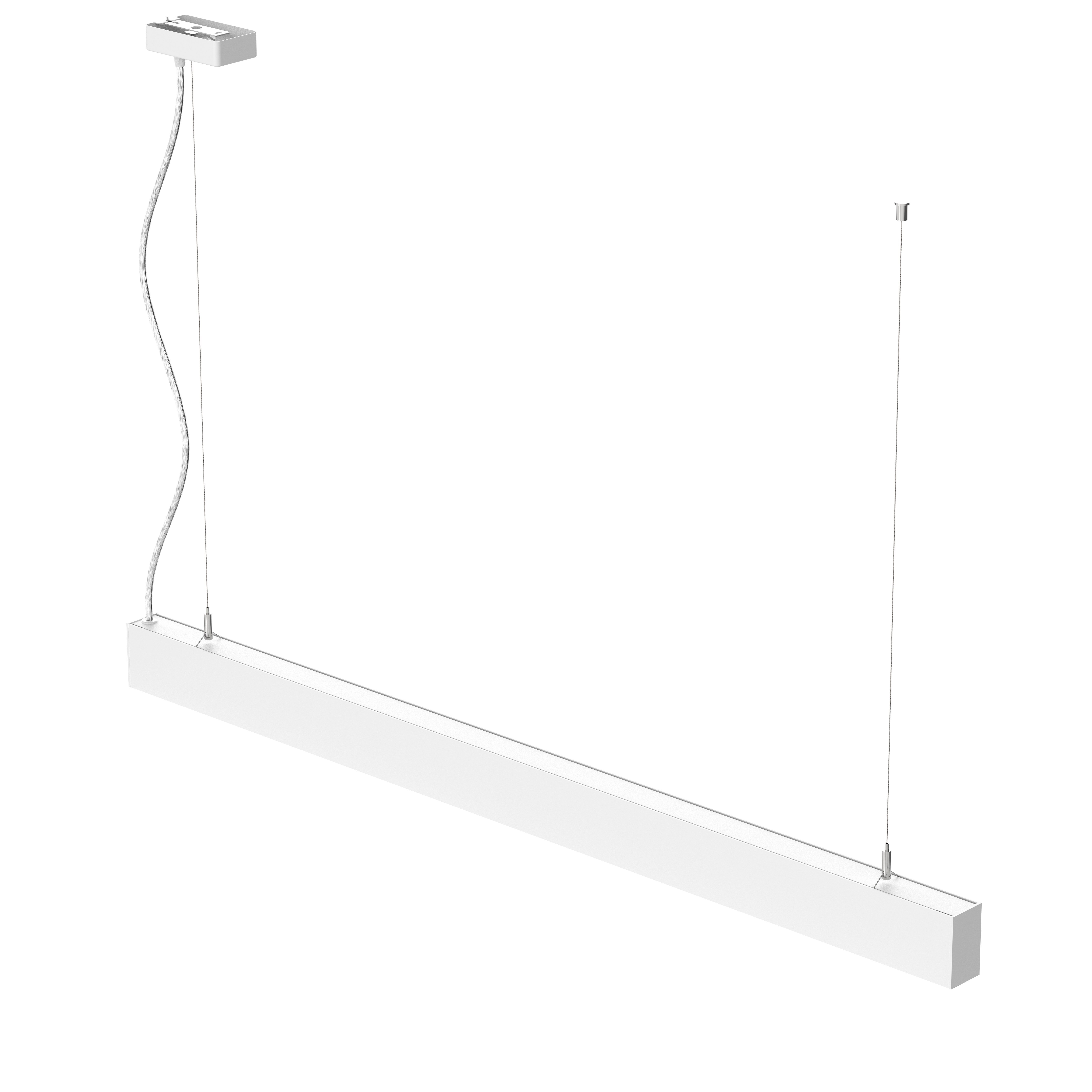

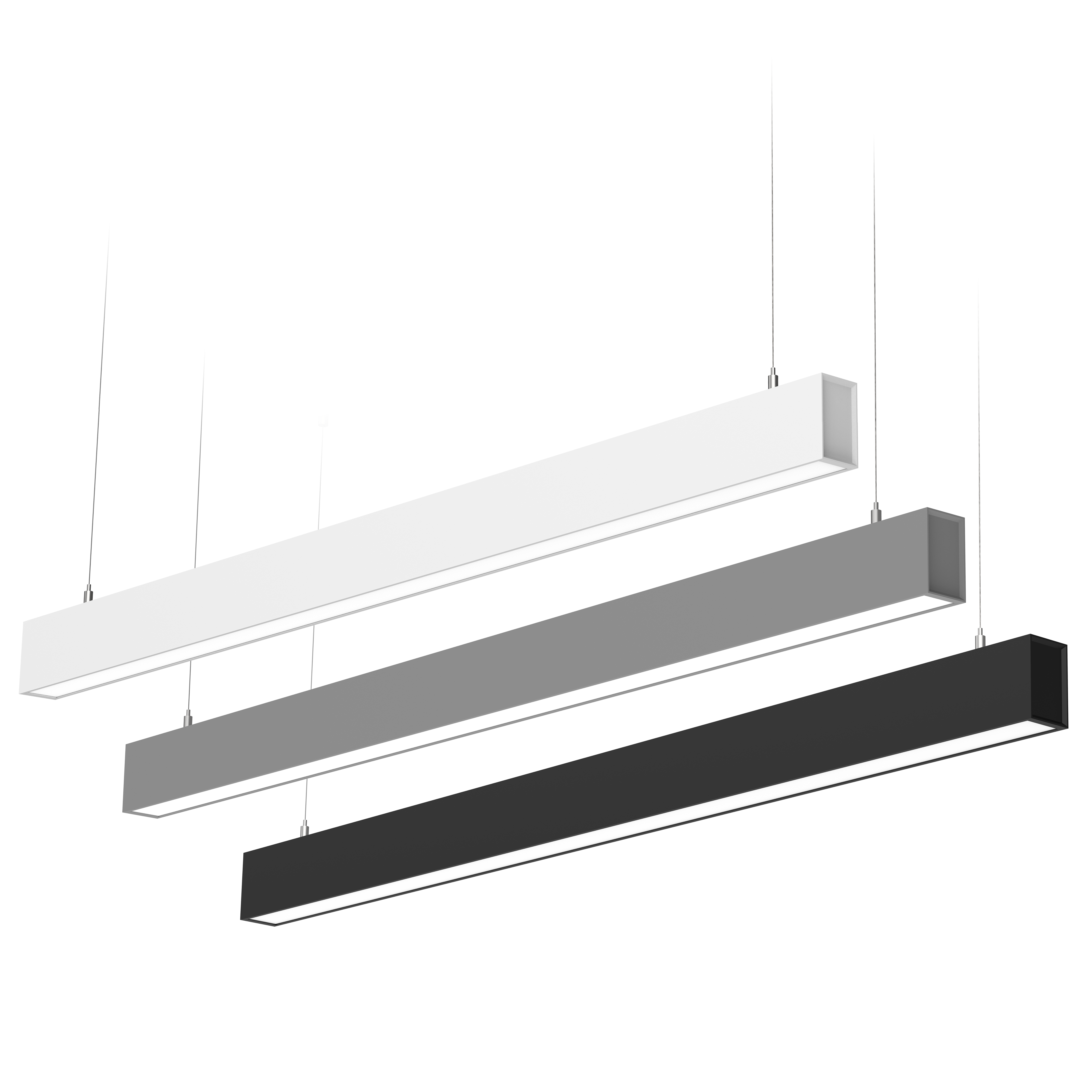

Flexline is our newly designed linear light with size of 50*75mm. Modular design with 5 optical lens options, it can be suitable for both stock orders and project orders. Modern classic looking and design, flexible installation, fine textured powder coated aluminium profile and die-cast end cap, believe this can be your choice.

Features

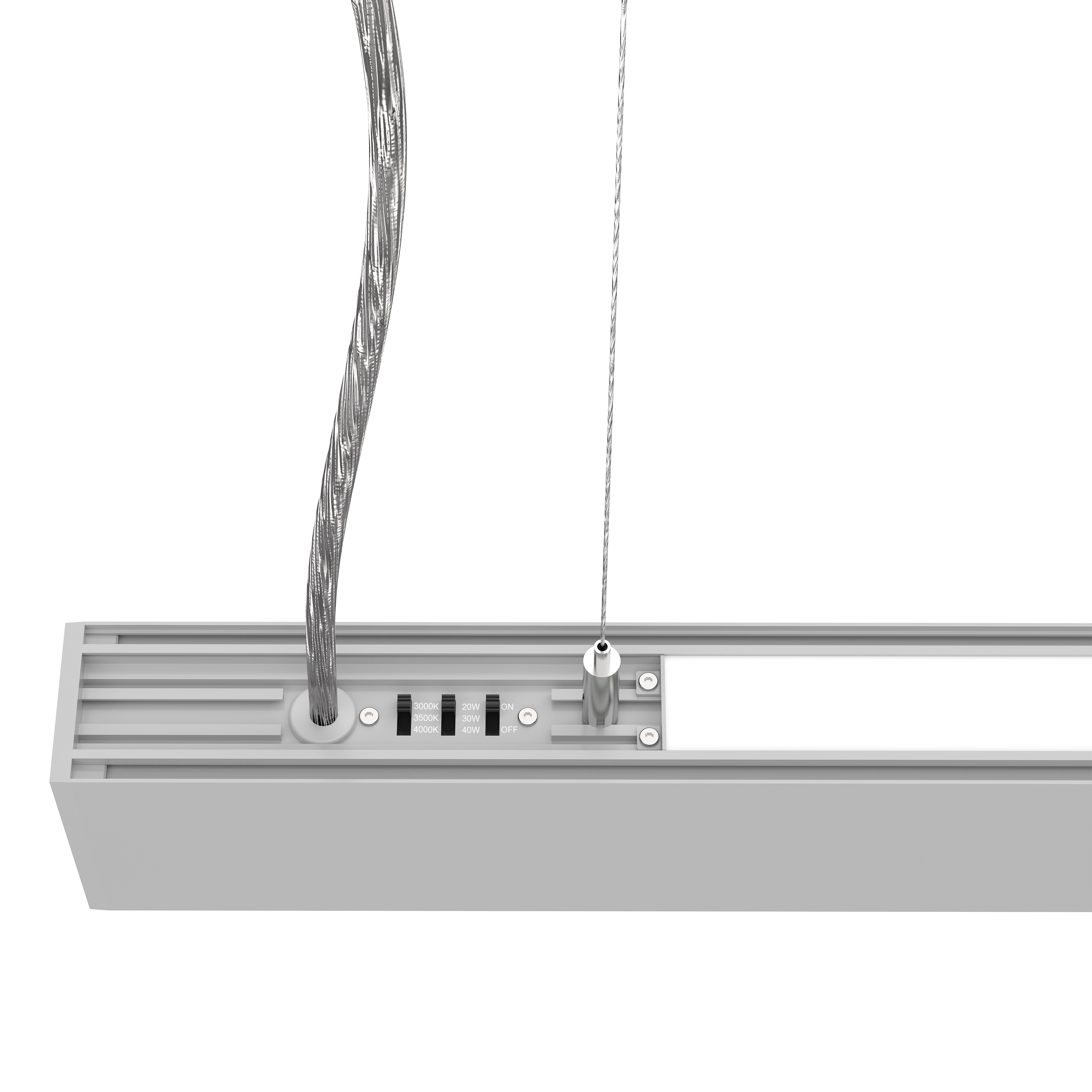

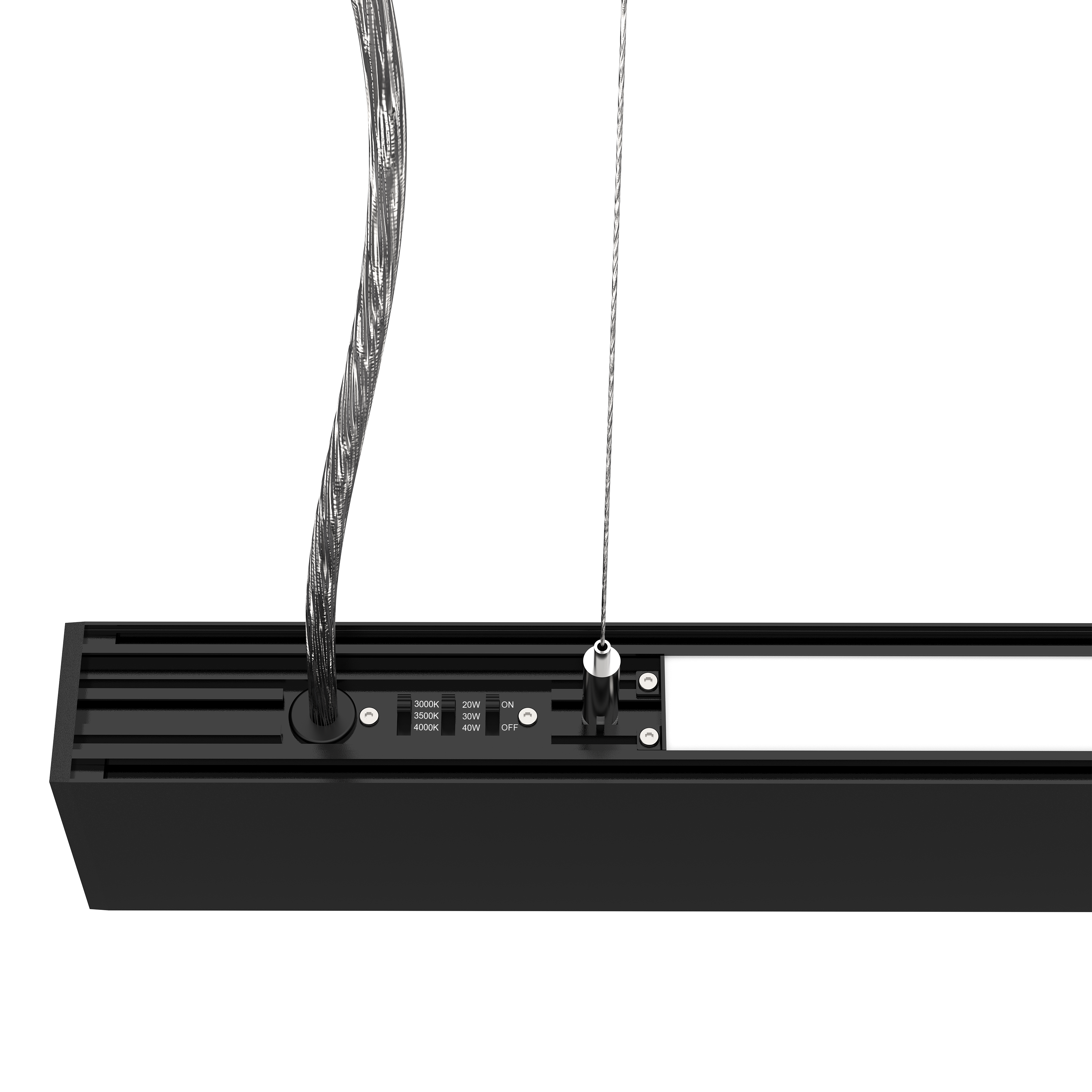

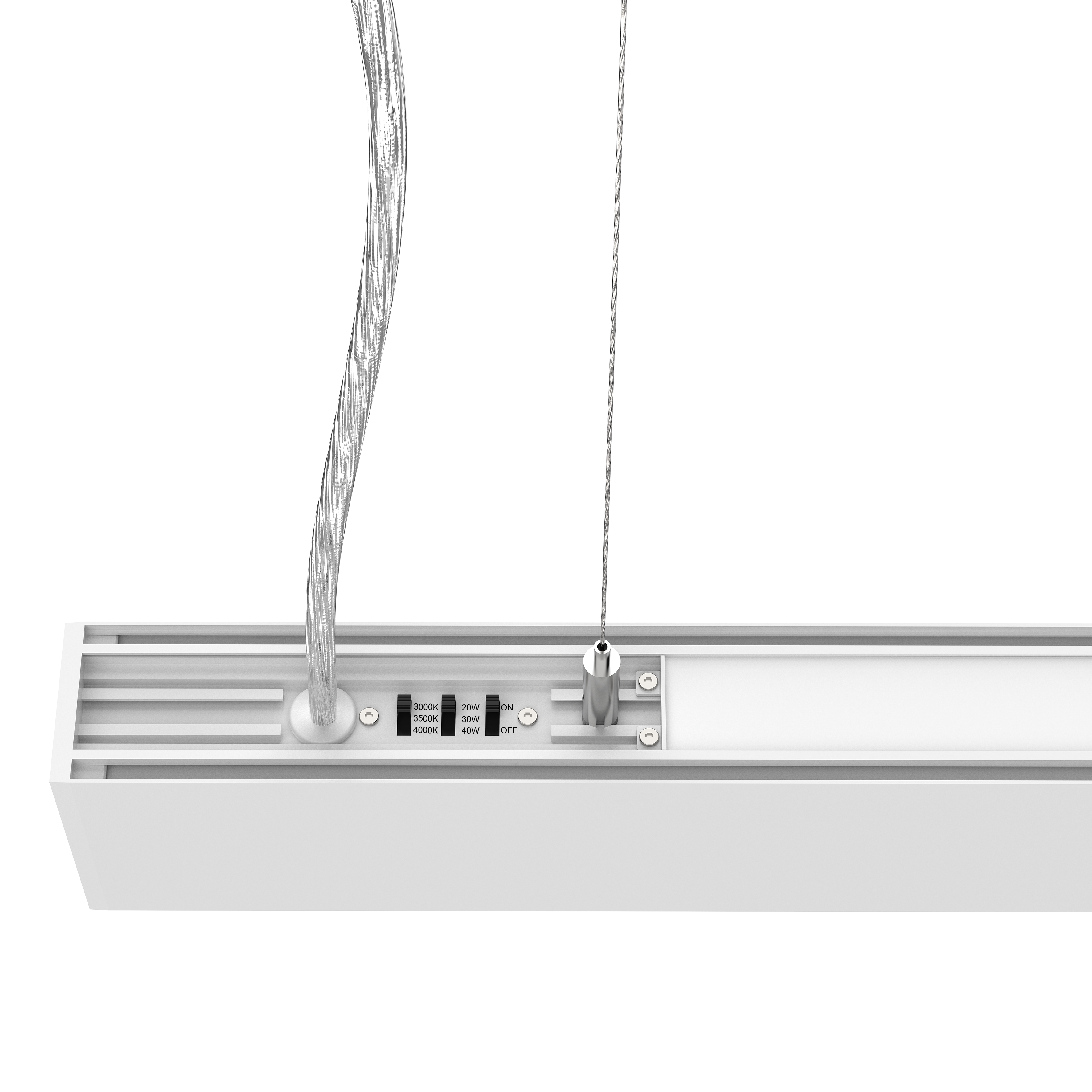

  • CCT:3000/4000/5000Kor CCT Selectable
  • Dimming: Non/1-10V dimming/DALl dimming

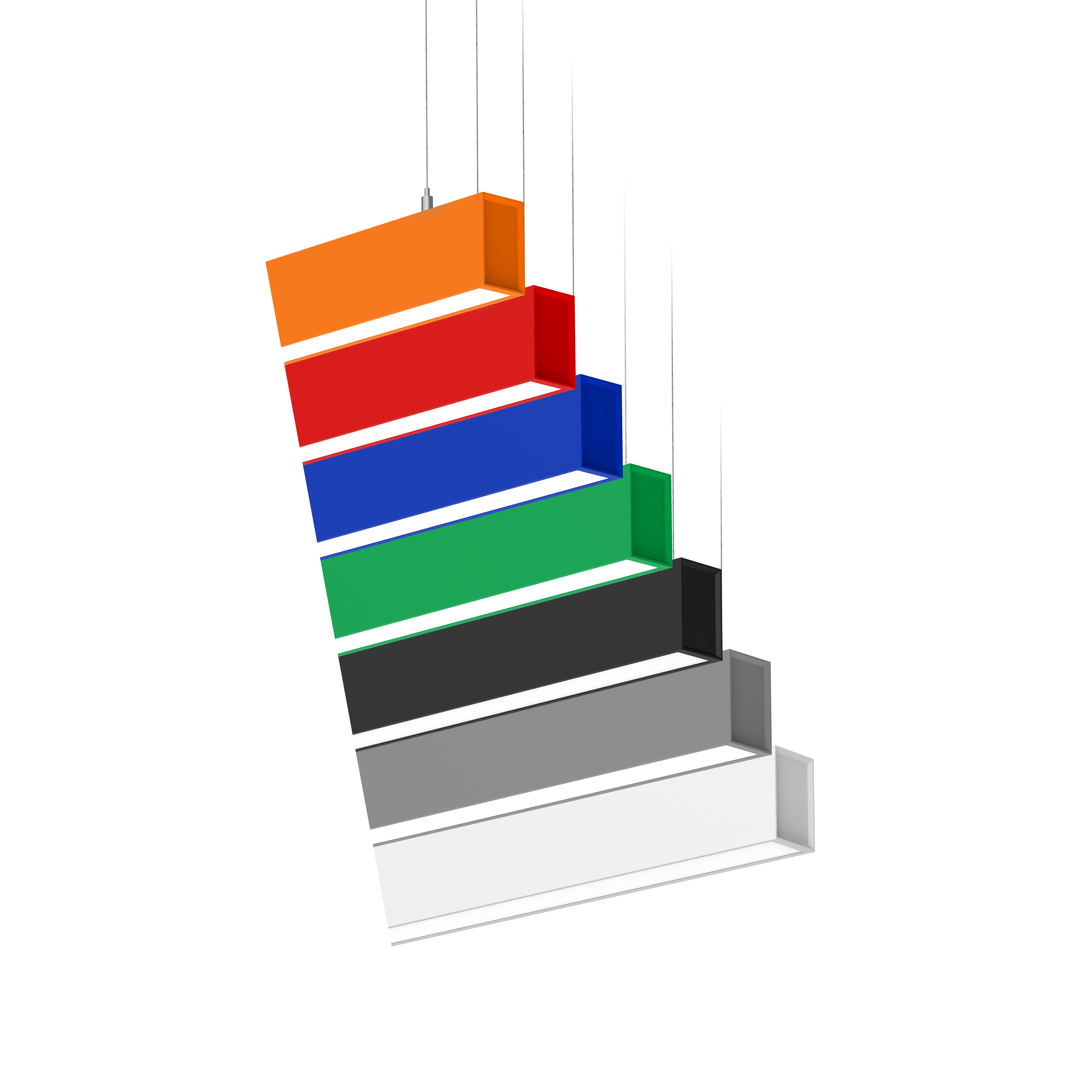

  • End Cup Colour: Silver / White / Black
  • Warranty: 5 years

Specifications

  • AC220-240V
  • Width 50mm

Applications

  • Office & Education Offices, reception rooms, counters
  • Retail & Hospitality Hotels, Restaurants

Installation Method

  • Flexline Linear

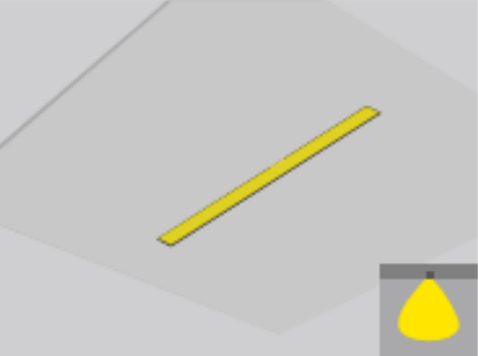

    Trimless Recessed Linear Light

  • Flexline Linear

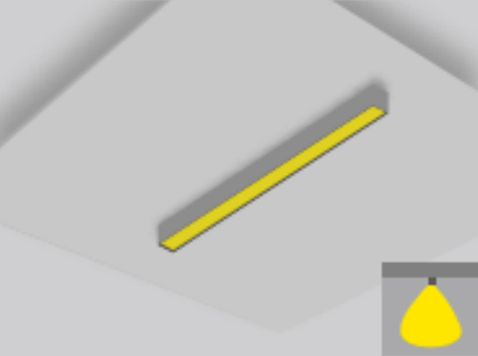

    Ceiling Mounted Linear Light

  • Flexline Linear

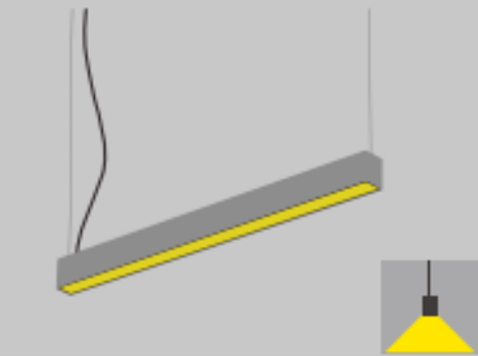

    Suspended Direct light

  • Flexline Linear

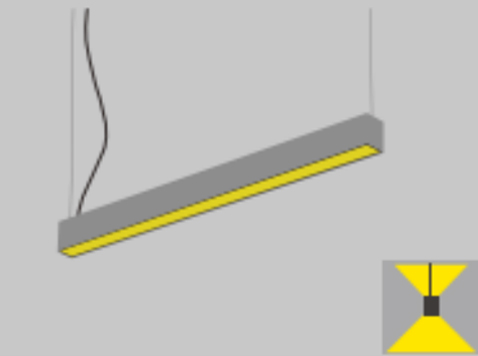

    Suspended indirect/Direct light

Product Filters

Use the filter to find the appropriate family and disvoer the products within

Length

Please select
  • 1200mm
  • 1500mm

Distributuion

Please select
  • Directct
  • Directct/Indirect

Power

Please select
  • 30w
  • 40w
  • 50w

Luminous Flux

Please select
  • 3300LM
  • 4200LM
  • 2000LM↑+2800LM↓
  • 2400LM↑+3600LM↓
  • 3000LM
  • 4000LM
  • 2000LM↑+2520LM↓
  • 2400LM↑+3150LM↓

CCT

Please select
  • 3000K
  • 4000K

Dimming

Please select
  • Non
  • DALI

Color

Please select
  • White
  • Black
  • Silver

Reflector

Please select
  • Microprismatic/Opal
  • Louvre/Grille

Items

Product Item Number Length Distribution Power Luminous Flux CCT Dimming Color Reflector Download Preview
FLN-DR120030-30K-WH-Non 1200mm Directct 30w 3300LM 3000K Non White Microprismatic/Opal
FLN-DR120030-40K-WH-Non 1200mm Directct 30w 3300LM 4000K Non White Microprismatic/Opal
FLN-DR120030-30K-WH-DALI 1200mm Directct 30w 3300LM 3000K DALI White Microprismatic/Opal
FLN-DR120030-40K-WH-DALI 1200mm Directct 30w 3300LM 4000K DALI White Microprismatic/Opal
FLN-DR120030-30K-BL-Non 1200mm Directct 30w 3300LM 3000K Non Black Microprismatic/Opal
FLN-DR120030-40K-BL-Non 1200mm Directct 30w 3300LM 4000K Non Black Microprismatic/Opal
FLN-DR120030-30K-BL-DALI 1200mm Directct 30w 3300LM 3000K DALI Black Microprismatic/Opal
FLN-DR120030-40K-BL-DALI 1200mm Directct 30w 3300LM 4000K DALI Black Microprismatic/Opal
FLN-DR120030-40K-SL-Non 1200mm Directct 30w 3300LM 4000K Non Silver Microprismatic/Opal
FLN-DR120030-30K-SL-Non 1200mm Directct 30w 3300LM 3000K Non Silver Microprismatic/Opal
FLN-DR120030-40K-SL-DALI 1200mm Directct 30w 3300LM 4000K DALI Silver Microprismatic/Opal
FLN-DR120030-30K-SL-DALI 1200mm Directct 30w 3300LM 3000K DALI Silver Microprismatic/Opal
FLN-DR120030-40K-WH-Non 1200mm Directct 30w 3300LM 4000K Non Silver Microprismatic/Opal
FLN-DR150030-30K-WH-Non 1500mm Directct 40w 4200LM 3000K Non White Microprismatic/Opal
FLN-DR150030-40K-WH-Non 1500mm Directct 40w 4200LM 4000K DALI White Microprismatic/Opal
FLN-DR150030-30K-WH-DALI 1500mm Directct 40w 4200LM 3000K DALI White Microprismatic/Opal
FLN-DR150030-40K-WH-DALI 1500mm Directct 40w 4200LM 4000K Non White Microprismatic/Opal
FLN-DR150030-30K-BL-Non 1500mm Directct 40w 4200LM 3000K Non Black Microprismatic/Opal
FLN-DR150030-40K-BL-Non 1500mm Directct 40w 4200LM 4000K DALI Black Microprismatic/Opal
FLN-DR150030-30K-BL-DALI 1500mm Directct 40w 4200LM 3000K DALI Black Microprismatic/Opal
FLN-DR150030-40K-BL-DALI 1500mm Directct 40w 4200LM 4000K Non Black Microprismatic/Opal
FLN-DR150030-30K-SL-Non 1500mm Directct 40w 4200LM 3000K Non Silver Microprismatic/Opal
FLN-DR150030-40K-SL-Non 1500mm Directct 40w 4200LM 4000K DALI Silver Microprismatic/Opal
FLN-DR150030-30K-SL-DALI 1500mm Directct 40w 4200LM 3000K DALI Silver Microprismatic/Opal
FLN-DR150030-40K-SL-DALI 1500mm Directct 40w 4200LM 4000K DALI Silver Microprismatic/Opal
FLN-ID120040-30K-WH-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K Non White Microprismatic/Opal
FLN-ID120040-40K-WH-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K Non White Microprismatic/Opal
FLN-ID120040-30K-WH-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K DALI White Microprismatic/Opal
FLN-ID120040-40K-WH-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K DALI White Microprismatic/Opal
FLN-ID120040-30K-BL-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K Non Black Microprismatic/Opal
FLN-ID120040-40K-BL-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K Non Black Microprismatic/Opal
FLN-ID120040-30K-BL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K DALI Black Microprismatic/Opal
FLN-ID120040-40K-BL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K DALI Black Microprismatic/Opal
FLN-ID120040-30K-SL-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K Non Silver Microprismatic/Opal
FLN-ID120040-40K-SL-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K Non Silver Microprismatic/Opal
FLN-ID120040-30K-SL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K DALI Silver Microprismatic/Opal
FLN-ID120040-40K-SL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K DALI Silver Microprismatic/Opal
FLN-ID150050-30K-WH-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K Non White Microprismatic/Opal
FLN-ID150050-40K-WH-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K Non White Microprismatic/Opal
FLN-ID150050-30K-WH-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K DALI White Microprismatic/Opal
FLN-ID150050-40K-WH-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K DALI White Microprismatic/Opal
FLN-ID150050-30K-BL-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K Non Black Microprismatic/Opal
FLN-ID150050-40K-BL-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K Non Black Microprismatic/Opal
FLN-ID150050-30K-BL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K DALI Black Microprismatic/Opal
FLN-ID150050-40K-BL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K DALI Black Microprismatic/Opal
FLN-ID150050-30K-SL-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K Non Silver Microprismatic/Opal
FLN-ID150050-40K-SL-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K Non Silver Microprismatic/Opal
FLN-ID150050-30K-SL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K DALI Silver Microprismatic/Opal
FLN-ID150050-40K-SL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K DALI Silver Microprismatic/Opal
FLN-DR120030-30K-WH-Non 1200mm Directct 30w 3000LM 3000K Non White Louvre/Grille
FLN-DR120030-40K-WH-Non 1200mm Directct 30w 3000LM 4000K Non White Louvre/Grille
FLN-DR120030-30K-WH-DALI 1200mm Directct 30w 3000LM 3000K DALI White Louvre/Grille
FLN-DR120030-40K-WH-DALI 1200mm Directct 30w 3000LM 4000K DALI White Louvre/Grille
FLN-DR120030-30K-BL-Non 1200mm Directct 30w 3000LM 3000K Non Black Louvre/Grille
FLN-DR120030-40K-BL-Non 1200mm Directct 30w 3000LM 4000K Non Black Louvre/Grille
FLN-DR120030-30K-BL-DALI 1200mm Directct 30w 3000LM 3000K DALI Black Louvre/Grille
FLN-DR120030-40K-BL-DALI 1200mm Directct 30w 3000LM 4000K DALI Black Louvre/Grille
FLN-DR120030-40K-SL-Non 1200mm Directct 30w 3000LM 4000K Non Silver Louvre/Grille
FLN-DR120030-30K-SL-Non 1200mm Directct 30w 3000LM 3000K Non Silver Louvre/Grille
FLN-DR120030-40K-SL-DALI 1200mm Directct 30w 3000LM 4000K DALI Silver Louvre/Grille
FLN-DR120030-30K-SL-DALI 1200mm Directct 30w 3000LM 3000K DALI Silver Louvre/Grille
FLN-DR120030-40K-WH-Non 1200mm Directct 30w 3000LM 4000K Non Silver Louvre/Grille
FLN-DR150030-30K-WH-Non 1500mm Directct 40w 4000LM 3000K Non White Louvre/Grille
FLN-DR150030-40K-WH-Non 1500mm Directct 40w 4000LM 4000K DALI White Louvre/Grille
FLN-DR150030-30K-WH-DALI 1500mm Directct 40w 4000LM 3000K DALI White Louvre/Grille
FLN-DR150030-40K-WH-DALI 1500mm Directct 40w 4000LM 4000K Non White Louvre/Grille
FLN-DR150030-30K-BL-Non 1500mm Directct 40w 4000LM 3000K Non Black Louvre/Grille
FLN-DR150030-40K-BL-Non 1500mm Directct 40w 4000LM 4000K DALI Black Louvre/Grille
FLN-DR150030-30K-BL-DALI 1500mm Directct 40w 4000LM 3000K DALI Black Louvre/Grille
FLN-DR150030-40K-BL-DALI 1500mm Directct 40w 4000LM 4000K Non Black Louvre/Grille
FLN-DR150030-30K-SL-Non 1500mm Directct 40w 4000LM 3000K Non Silver Louvre/Grille
FLN-DR150030-40K-SL-Non 1500mm Directct 40w 4000LM 4000K DALI Silver Louvre/Grille
FLN-DR150030-30K-SL-DALI 1500mm Directct 40w 4000LM 3000K DALI Silver Louvre/Grille
FLN-DR150030-40K-SL-DALI 1500mm Directct 40w 4000LM 4000K DALI Silver Louvre/Grille
FLN-ID120040-30K-WH-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K Non White Louvre/Grille
FLN-ID120040-40K-WH-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K Non White Louvre/Grille
FLN-ID120040-30K-WH-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K DALI White Louvre/Grille
FLN-ID120040-40K-WH-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K DALI White Louvre/Grille
FLN-ID120040-30K-BL-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K Non Black Louvre/Grille
FLN-ID120040-40K-BL-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K Non Black Louvre/Grille
FLN-ID120040-30K-BL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K DALI Black Louvre/Grille
FLN-ID120040-40K-BL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K DALI Black Louvre/Grille
FLN-ID120040-30K-SL-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K Non Silver Louvre/Grille
FLN-ID120040-40K-SL-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K Non Silver Louvre/Grille
FLN-ID120040-30K-SL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K DALI Silver Louvre/Grille
FLN-ID120040-40K-SL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K DALI Silver Louvre/Grille
FLN-ID150050-30K-WH-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K Non White Louvre/Grille
FLN-ID150050-40K-WH-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K Non White Louvre/Grille
FLN-ID150050-30K-WH-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K DALI White Louvre/Grille
FLN-ID150050-40K-WH-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K DALI White Louvre/Grille
FLN-ID150050-30K-BL-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K Non Black Louvre/Grille
FLN-ID150050-40K-BL-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K Non Black Louvre/Grille
FLN-ID150050-30K-BL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K DALI Black Louvre/Grille
FLN-ID150050-40K-BL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K DALI Black Louvre/Grille
FLN-ID150050-30K-SL-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K Non Silver Louvre/Grille
FLN-ID150050-40K-SL-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K Non Silver Louvre/Grille
FLN-ID150050-30K-SL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K DALI Silver Louvre/Grille
FLN-ID150050-40K-SL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K DALI Silver Louvre/Grille
