Grammy Linear

Grammy Linear

Home > Products / Grammy Linear

  • Grammy Linear
  • Grammy Linear
  • Grammy Linear

Overview

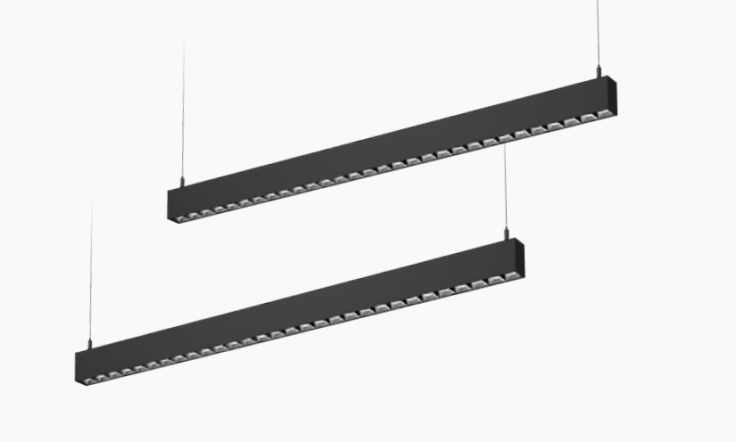

Grammy linear luminaire uses classic louvres to creat harmonic lighting environment.
Thanks to its unique LED source combine innovative reflectors with a brillant outlook, the upper batwing light distribution offers excellent illumination, glare control within UGR＜16.

Features

  • CCT:3000/4000/5000K
  • Dimming: Non/1-10V dimming / DALI dimming
  • End Cup Colour: Silver / White / Black
  • Warranty: 5 years

Specifications

  • AC220-240V
  • 44*75mm

Applications

  • Office & Education Offices, reception rooms, counters
  • Retail & Hospitality Hotels, Restaurants

Installation Method

  • Grammy Linear

    Trimless Recessed Linear Light

  • Grammy Linear

    Ceiling Mounted Linear Light

  • Grammy Linear

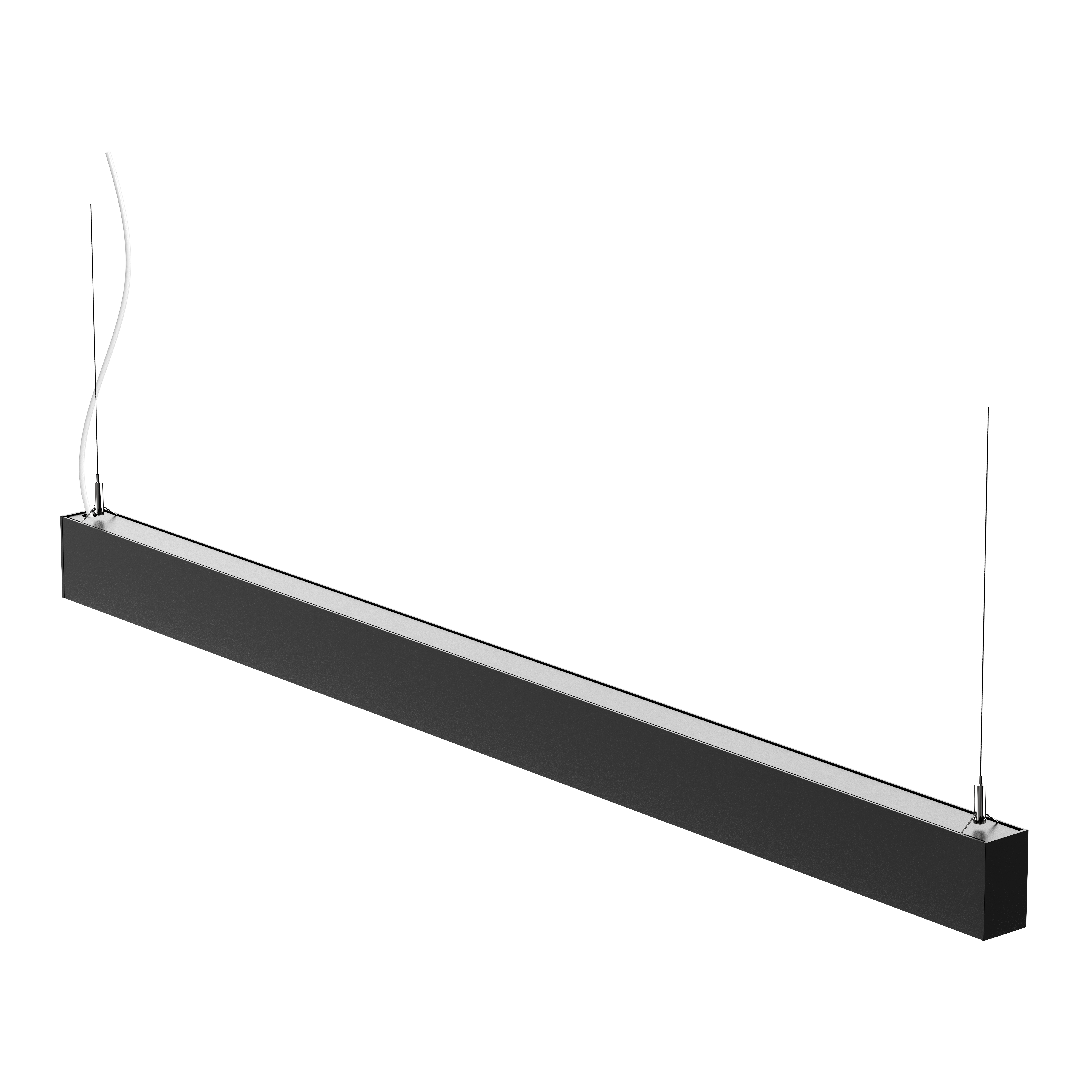

    Suspended Direct light

  • Grammy Linear

    Suspended Indirect/Direct light

Product Filters

Use the filter to find the appropriate family and disvoer the products within

Length

Please select
  • 1146mm
  • 1526mm

Distributuion

Please select
  • Direct
  • Direct/Indirect

Power

Please select
  • 30W
  • 40W
  • 50W

Luminous Flux

Please select
  • 3000LM↓
  • 1800LM↑+2200LM↓
  • 4000LM↓
  • 2200LM↑+2800LM↓

CCT

Please select
  • 3000K
  • 4000K
  • 5000K

Dimming

Please select
  • Non
  • DALI

Color

Please select
  • White
  • Black
  • Sliver

Reflector

Please select
  • Louvre

Items

Product Item Number Length Distribution Power Luminous Flux CCT Dimming Color Reflector Download Preview
GM-DR120030-30K-WH-Non 1146mm Direct 30W 3000LM↓ 3000K Non White Louvre
GM-DR120030-40K-WH-Non 1146mm Direct 30W 3000LM↓ 4000K Non White Louvre
GM-DR120030-50K-WH-Non 1146mm Direct 30W 3000LM↓ 5000K Non White Louvre
GM-DR120030-30K-WH-DALI 1146mm Direct 30W 3000LM↓ 3000K DALI White Louvre
GM-DR120030-40K-WH-DALI 1146mm Direct 30W 3000LM↓ 4000K DALI White Louvre
GM-DR120030-50K-WH-DALI 1146mm Direct 30W 3000LM↓ 5000K DALI White Louvre
GM-DR120030-30K-BL-Non 1146mm Direct 30W 3000LM↓ 3000K Non Black Louvre
GM-DR120030-40K-BL-Non 1146mm Direct 30W 3000LM↓ 4000K Non Black Louvre
GM-DR120030-50K-BL-Non 1146mm Direct 30W 3000LM↓ 5000K Non Black Louvre
GM-DR120030-30K-BL-DALI 1146mm Direct 30W 3000LM↓ 3000K Non Black Louvre
GM-DR120030-40K-BL-DALI 1146mm Direct 30W 3000LM↓ 4000K Non Black Louvre
GM-DR120030-50K-SL-DALI 1146mm Direct 30W 3000LM↓ 5000K Non Black Louvre
GM-DR120030-30K-SL-Non 1146mm Direct 30W 3000LM↓ 3000K Non Sliver Louvre
GM-DR120030-40K-SL-Non 1146mm Direct 30W 3000LM↓ 4000K Non Sliver Louvre
GM-DR120030-50K-SL-Non 1146mm Direct 30W 3000LM↓ 5000K Non Sliver Louvre
GM-DR120030-30K-SL-DALI 1146mm Direct 30W 3000LM↓ 3000K Non Sliver Louvre
GM-DR120030-40K-SL-DALI 1146mm Direct 30W 3000LM↓ 4000K Non Sliver Louvre
GM-DR120030-50K-SL-DALI 1146mm Direct 30W 3000LM↓ 5000K Non Sliver Louvre
GM-ID120040-30K-WH-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K Non White Louvre
GM-ID120040-40K-WH-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K Non White Louvre
GM-ID120040-50K-WH-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K Non White Louvre
GM-ID120040-30K-WH-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K DALI White Louvre
GM-ID120040-40K-WH-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K DALI White Louvre
GM-ID120040-50K-WH-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K DALI White Louvre
GM-ID120040-30K-BL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K Non Black Louvre
GM-ID120040-40K-BL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K Non Black Louvre
GM-ID120040-50K-BL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K Non Black Louvre
GM-ID120040-30K-BL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K Non Black Louvre
GM-ID120040-40K-BL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K Non Black Louvre
GM-ID120040-50K-SL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K Non Black Louvre
GM-ID120040-30K-SL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K Non Sliver Louvre
GM-ID120040-40K-SL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K Non Sliver Louvre
GM-ID120040-50K-SL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K Non Sliver Louvre
GM-ID120040-30K-SL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K Non Sliver Louvre
GM-ID120040-40K-SL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K Non Sliver Louvre
GM-ID120040-50K-SL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K Non Sliver Louvre
GM-DR150050-30K-WH-Non 1526mm Direct 40W 4000LM↓ 3000K Non White Louvre
GM-DR150050-40K-WH-Non 1526mm Direct 40W 4000LM↓ 4000K Non White Louvre
GM-DR150050-50K-WH-Non 1526mm Direct 40W 4000LM↓ 5000K Non White Louvre
GM-DR150050-30K-WH-DALI 1526mm Direct 40W 4000LM↓ 3000K DALI White Louvre
GM-DR150050-40K-WH-DALI 1526mm Direct 40W 4000LM↓ 4000K DALI White Louvre
GM-DR150050-50K-WH-DALI 1526mm Direct 40W 4000LM↓ 5000K DALI White Louvre
GM-DR150050-30K-BL-Non 1526mm Direct 40W 4000LM↓ 3000K Non Black Louvre
GM-DR150050-40K-BL-Non 1526mm Direct 40W 4000LM↓ 4000K Non Black Louvre
GM-DR150050-50K-BL-Non 1526mm Direct 40W 4000LM↓ 5000K Non Black Louvre
GM-DR150050-30K-BL-DALI 1526mm Direct 40W 4000LM↓ 3000K Non Black Louvre
GM-DR150050-40K-BL-DALI 1526mm Direct 40W 4000LM↓ 4000K Non Black Louvre
GM-DR150050-50K-SL-DALI 1526mm Direct 40W 4000LM↓ 5000K Non Black Louvre
GM-DR150050-30K-SL-Non 1526mm Direct 40W 4000LM↓ 3000K Non Sliver Louvre
GM-DR150050-40K-SL-Non 1526mm Direct 40W 4000LM↓ 4000K Non Sliver Louvre
GM-DR150050-50K-SL-Non 1526mm Direct 40W 4000LM↓ 5000K Non Sliver Louvre
GM-DR150050-30K-SL-DALI 1526mm Direct 40W 4000LM↓ 3000K Non Sliver Louvre
GM-DR150050-40K-SL-DALI 1526mm Direct 40W 4000LM↓ 4000K Non Sliver Louvre
GM-DR150050-50K-SL-DALI 1526mm Direct 40W 4000LM↓ 5000K Non Sliver Louvre
GM-ID150050-30K-WH-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K Non White Louvre
GM-ID150050-40K-WH-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K Non White Louvre
GM-ID150050-50K-WH-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K Non White Louvre
GM-ID150050-30K-WH-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K DALI White Louvre
GM-ID150050-40K-WH-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K DALI White Louvre
GM-ID150050-50K-WH-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K DALI White Louvre
GM-ID150050-30K-BL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K Non Black Louvre
GM-ID150050-40K-BL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K Non Black Louvre
GM-ID150050-50K-BL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K Non Black Louvre
GM-ID150050-30K-BL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K Non Black Louvre
GM-ID150050-40K-BL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K Non Black Louvre
GM-ID150050-50K-SL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K Non Black Louvre
GM-ID150050-30K-SL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K Non Sliver Louvre
GM-ID150050-40K-SL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K Non Sliver Louvre
GM-ID150050-50K-SL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K Non Sliver Louvre
GM-ID150050-30K-SL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K Non Sliver Louvre
GM-ID150050-40K-SL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K Non Sliver Louvre
GM-ID150050-50K-SL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K Non Sliver Louvre
